Belts for AMI Jukeboxes.
Scan down the page to view my complete
inventory of AMI belts.
Don't see your belt listed? Feel free to email
me, if I can find a match I'll add it to the site!
The average life expectancy for a drive belt is about 8 years. If you can't
remember the last time you changed your belt, or never have, your long
overdue...an old stiff belt will cause accelerated wear of your driveline!
AMI Turntable Belts

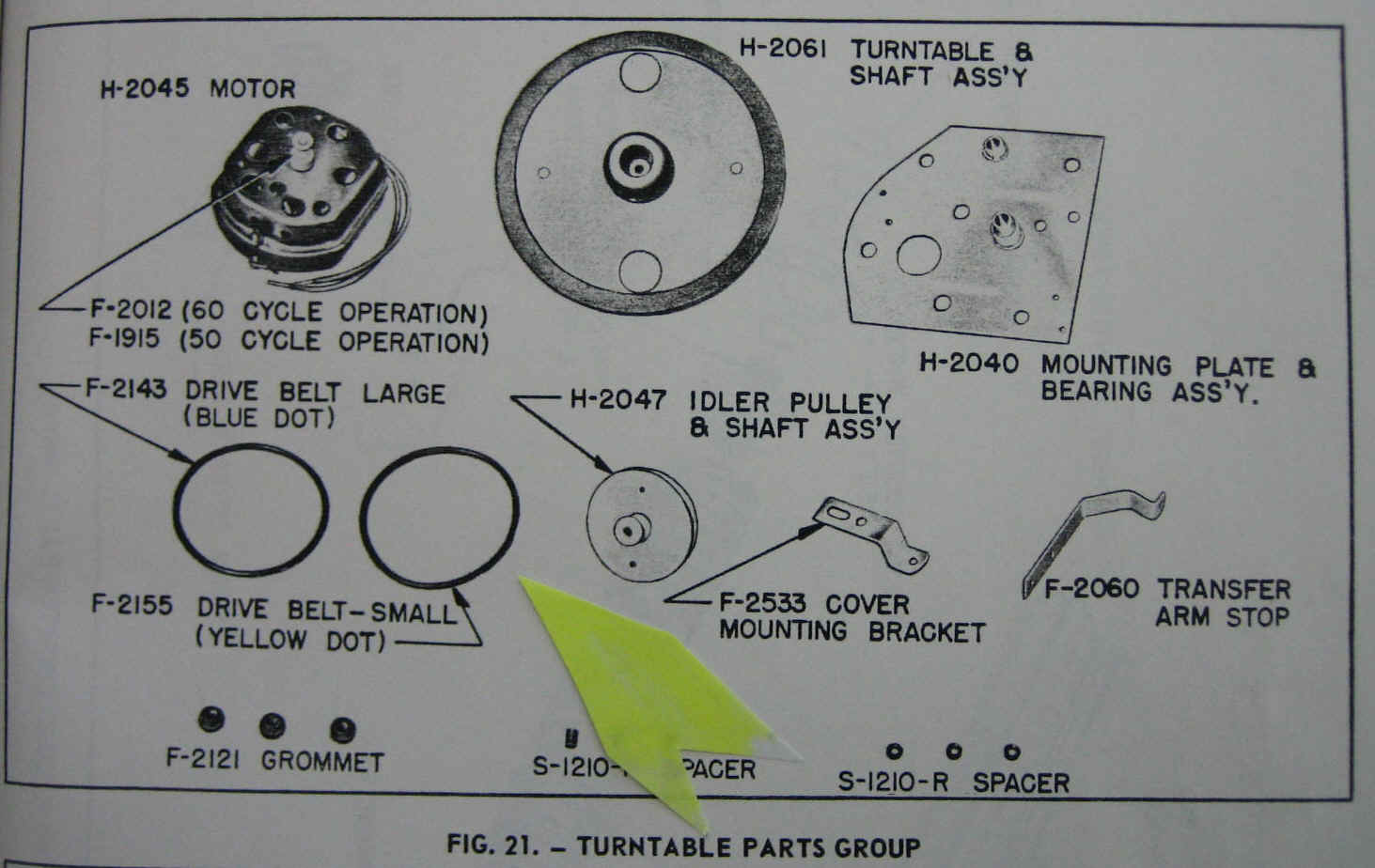

AMI models D-80, E-80 and E-120 all used a dual
belt system with an intermediate idler pulley.
Tip: The short belt runs from the turntable motor hub to
the idler pulley & longer one runs from the pulley and then
around the turntable hub
Belts are sold in pairs: Replaces AMI Yellow Dot Short Belt #F-2155
& Blue Dot Long Belt #F-2143
Available in black rubber for $13.95 pair
Or red silicone for $16.95 pair

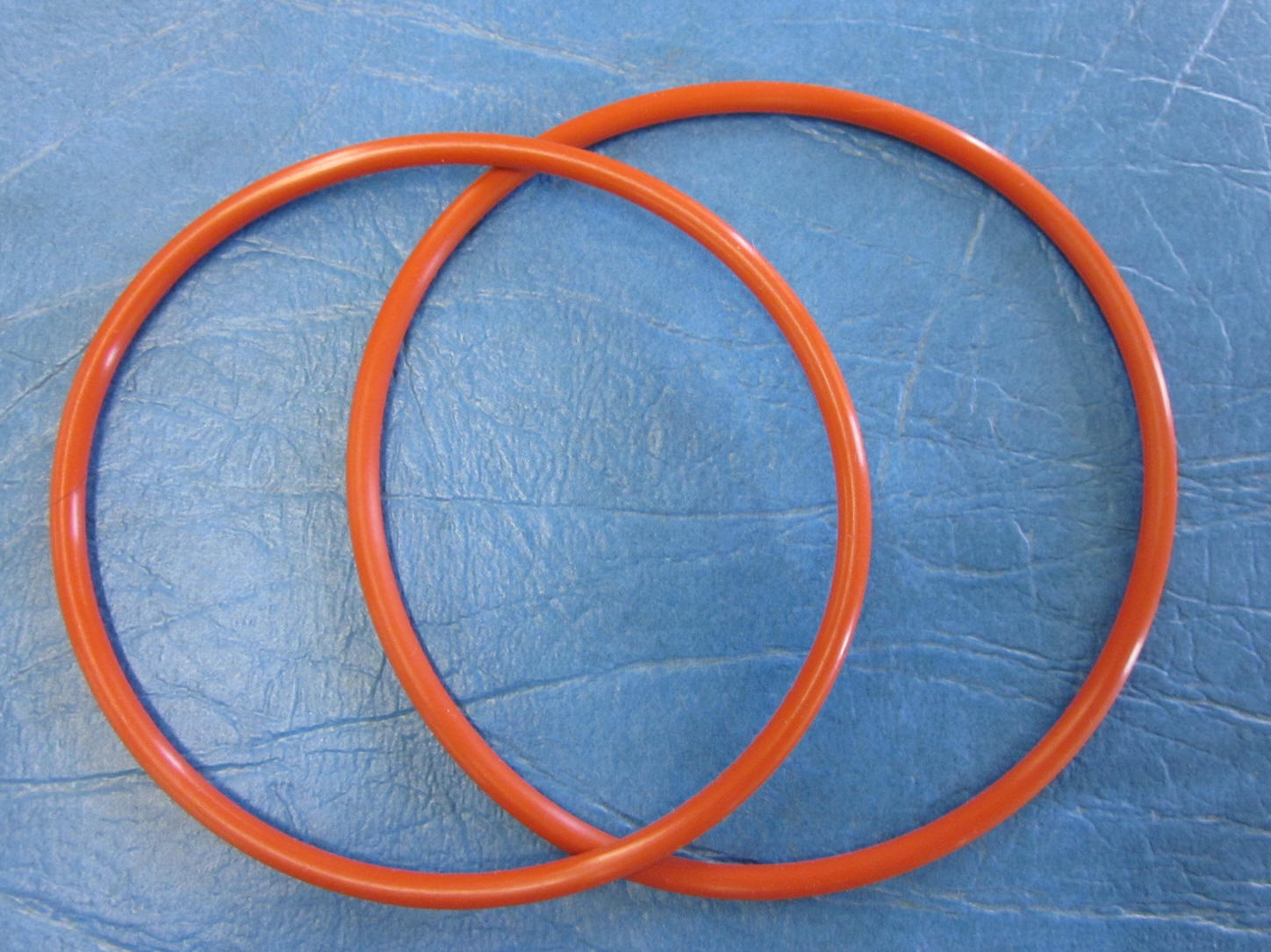

Why red silicone belts? They are more flexible and give
better traction which equals smoother play with less drag and truer
speed transfer, plus they last longer!
AMI Scan Control Belt
This belt fits the scan control drive on AMI K,
Continental 1 & 2 models. It's possible some late model J series
mechanism's may also share this belt
Found on the lower left front of the later
production 900 series mechs
Replaces AMI #F-8155 $7.50 each
AMI Record Retainer Belt
This long flat belt fits around
the record magazine and holds the records in place while the
Fits: G200 & All H, I, J, K &
Continental 1 & 2 models including 100, 120 & 200 versions
Changer Models: X200, 900, 900-1, 950, 960, 985, 990
AMI Part #F-3436
(Belt Color May Vary depending on availability)
