New Cartridges for Seeburg Jukeboxes

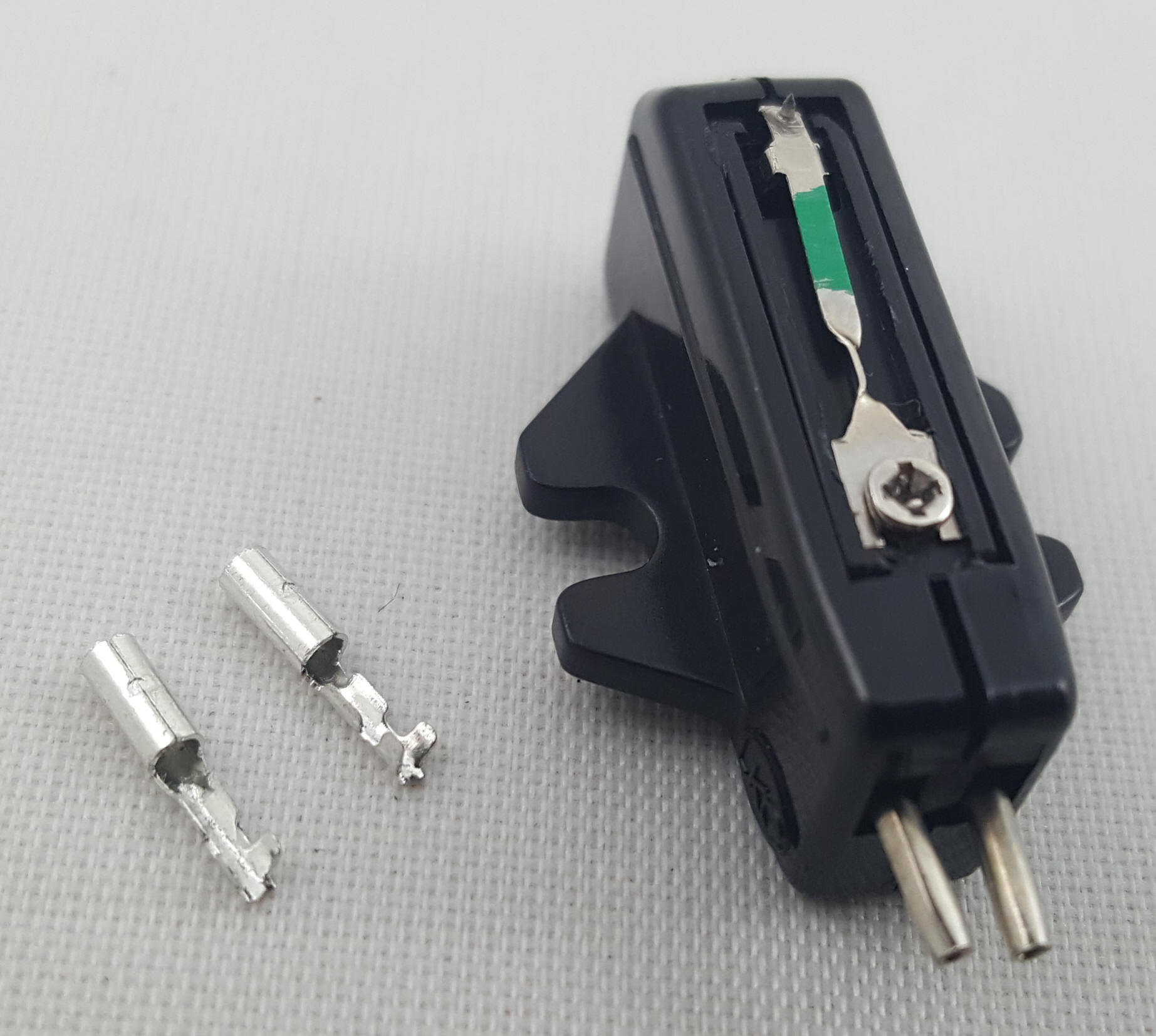

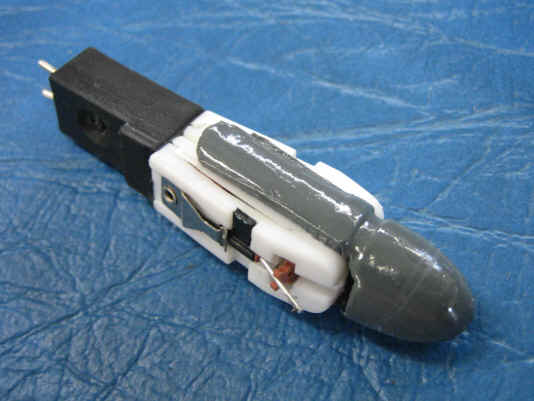

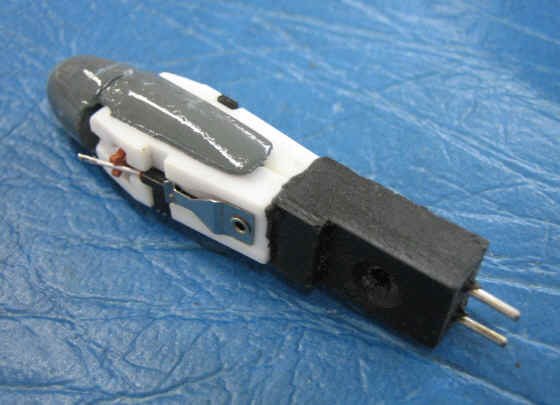

P51 Replacement Cartridge - For use with 20 selection models



A perennial favorite for converting 78 playing jukeboxes of the 30's and 40's to lightweight-record friendly machines

Excellent choice for replacing the factory crystal cartridges found in Seeburg 146, 147 & 148's and some earlier models

Installation of this cartridge will require some soldering and may also require some fitment/modifications

Note: This cartridge will not work with 1949 & later 100 selection models

Cartridge sold complete as shown with needle pre-installed and 2 solder lugs

Max recommended tracking pressure: 8 Grams for 78's and 6 grams for 45 play



45 and Repro 78 play with Sapphire Tip For use with stereo or mono 45 RPM records or new 78's only (Sold with a Sapphire .7 mil stereo compliant needle) $19.99

45 and Repro 78 play with Diamond Tip For use with stereo or mono 45 RPM records or new 78's only (Sold with a Diamond .7 mil stereo compliant needle) $29.99

Currently Out Of Stock



2 mil: Best machines that Play 45's and 78's or new and old 78's intermixed  For use with original and reproduction 78 RPM records (Sold with a 2 mil sapphire needle installed) $19.99

3 Mil: Best for machines playing vintage 78s  For use with original 78 RPM records (preloaded with 3 mil needle) $22.99

horizontal rule

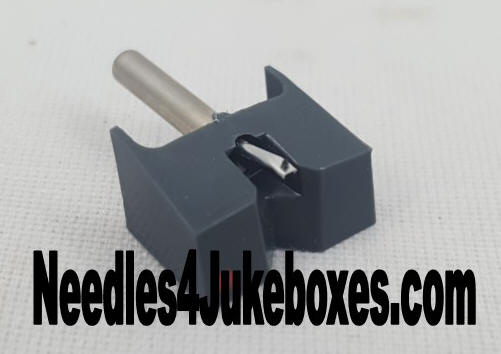

P51 78 RPM Replacement Needles


Sapphire 2 mil tip $10

Sapphire 3 mil tip $12.99

P51 45 RPM Replacement Needles

Diamond .7 mil tip $14.95 (Best overall pick for 45/33 records)

Currently Out of Stock

Sapphire .7 mil tip $10 (Good for stereo & mono 45's, but shorter life then diamond tip)

Sapphire 1 mil tip $10 (Better for mono 45's, but will play stereo)

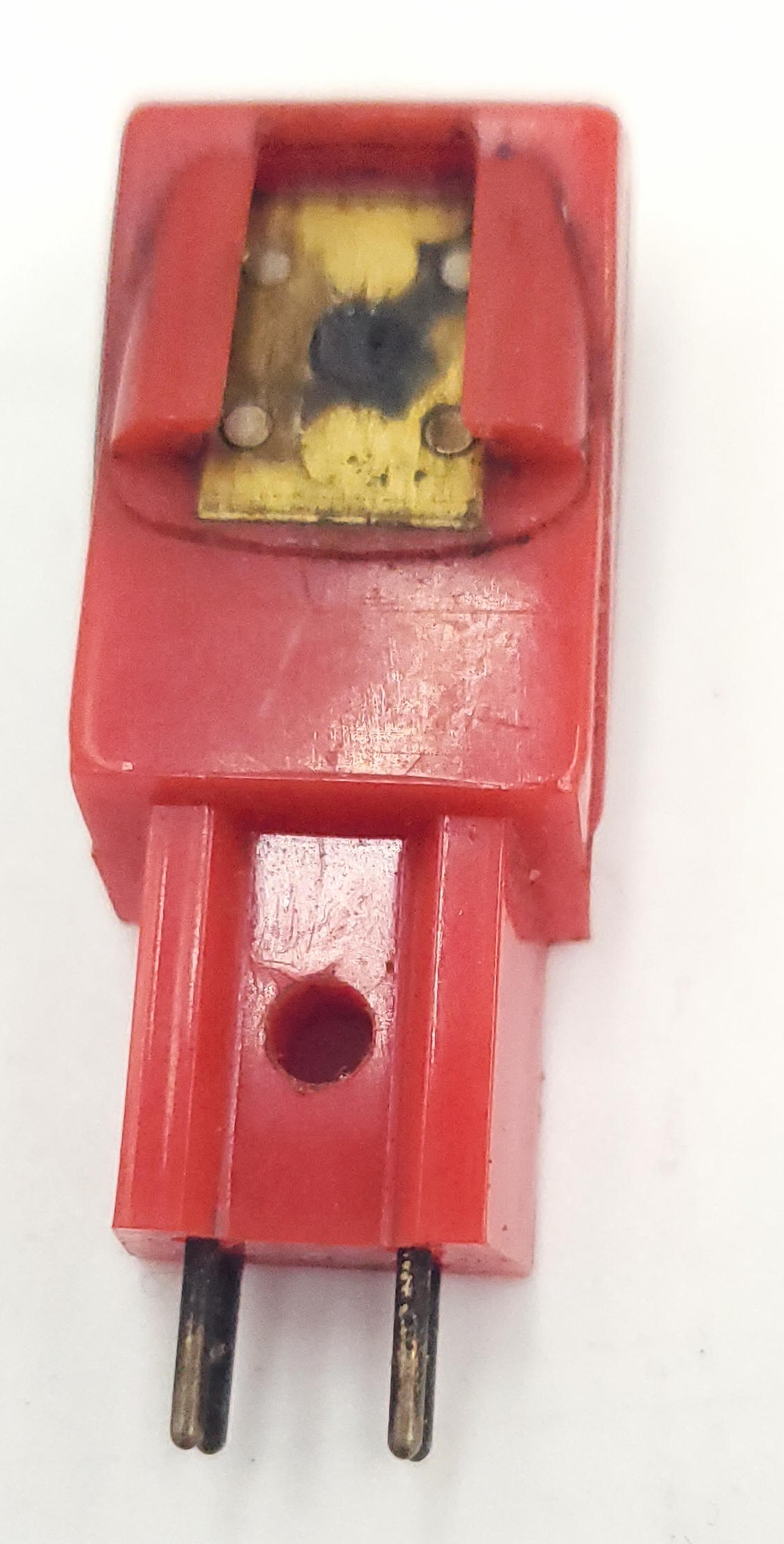

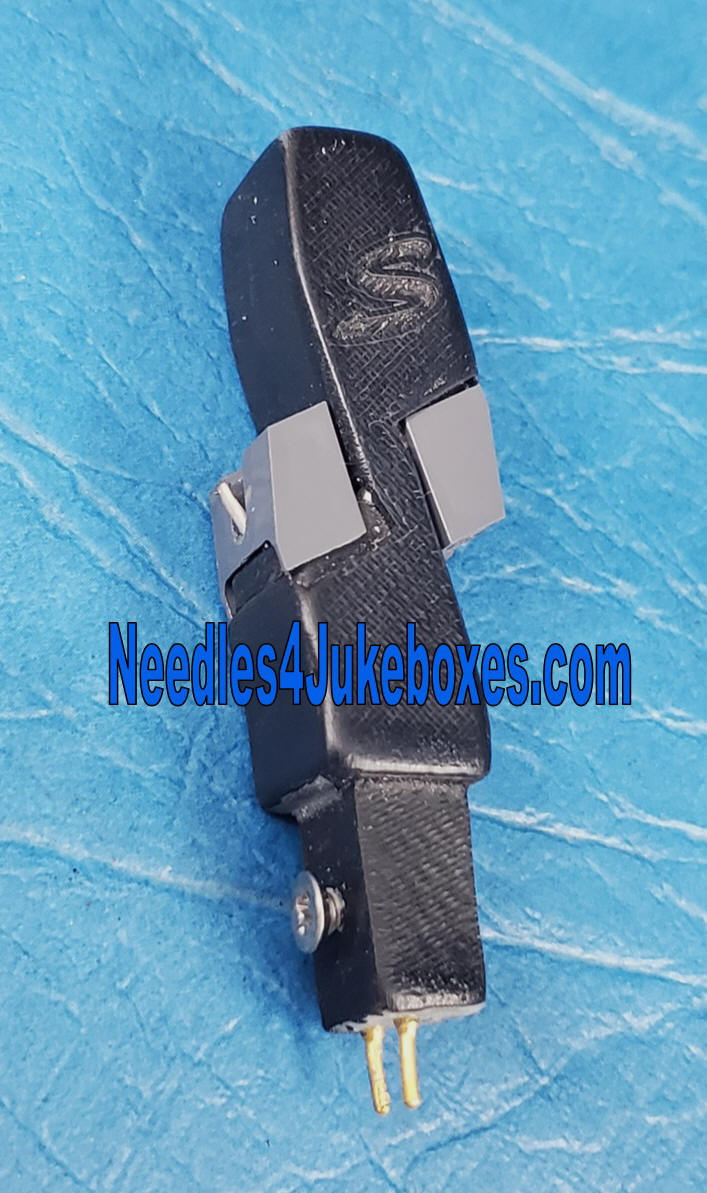

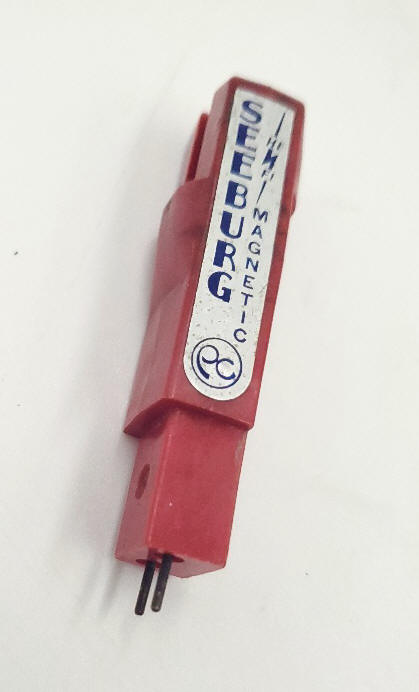

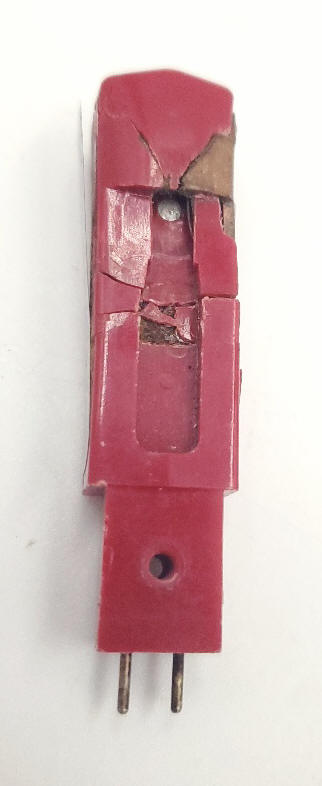

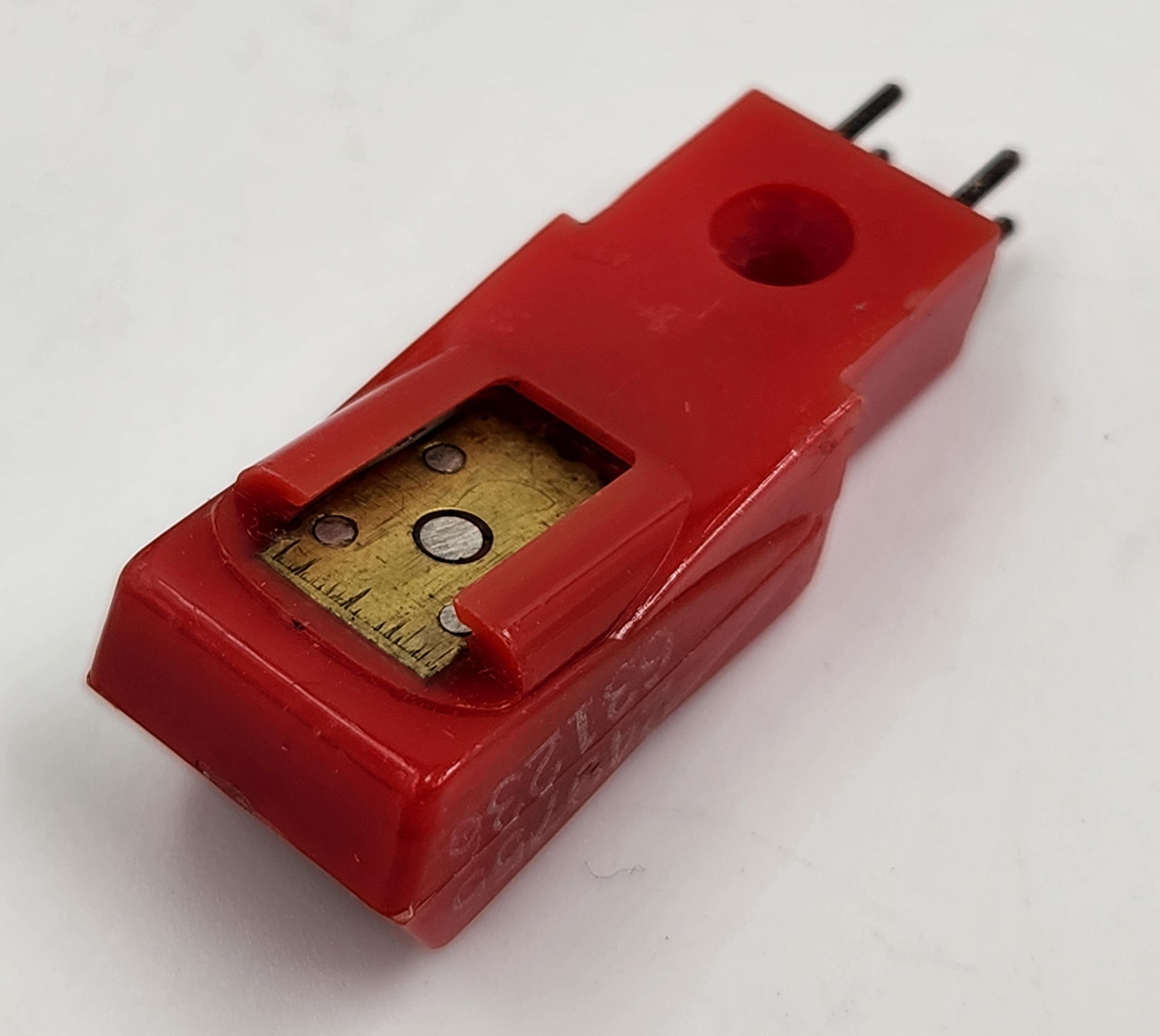

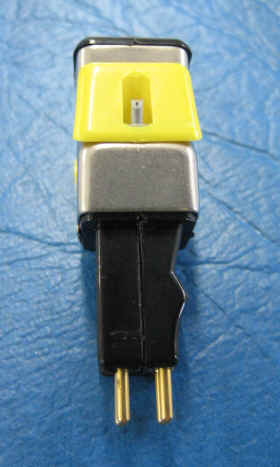

Pickering Blackhead/Redhead Mono Cartridge Replacement

New replacement cartridge for use on Seeburg models with 2 pin cartridge sockets: 100B through 201



Currently only available in red

Exact fit, each cartridge comes with a pair of needles

Note: As with the Pickering 345D, some trimming of the biasing weight may be required for exact tracking and proper feed in

Fits all Seeburg models: M100B - 201    $349.99

horizontal rule

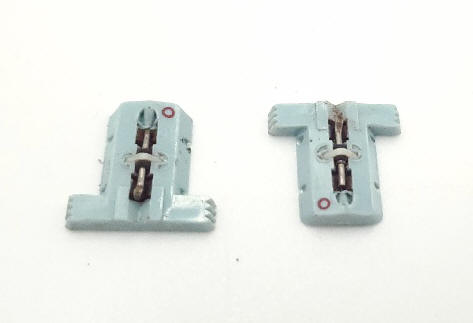

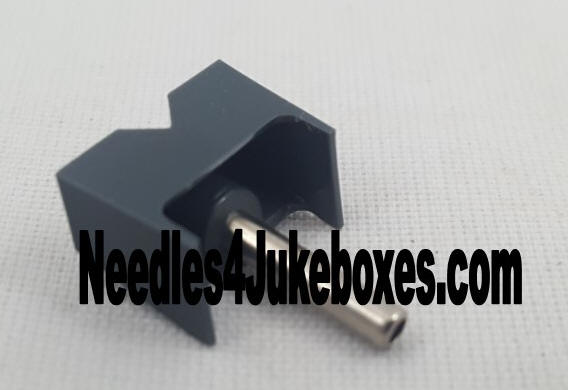

Commercial Duty Replacement Needle

Diamond tip for 45/33 play $39.99 per pair



Original Seeburg Needles and Cartridges

All used items are used, sold as-is, with no warranty

If you have questions, ask them before you purchase - cartridges are No Return

Click here for matching new needles

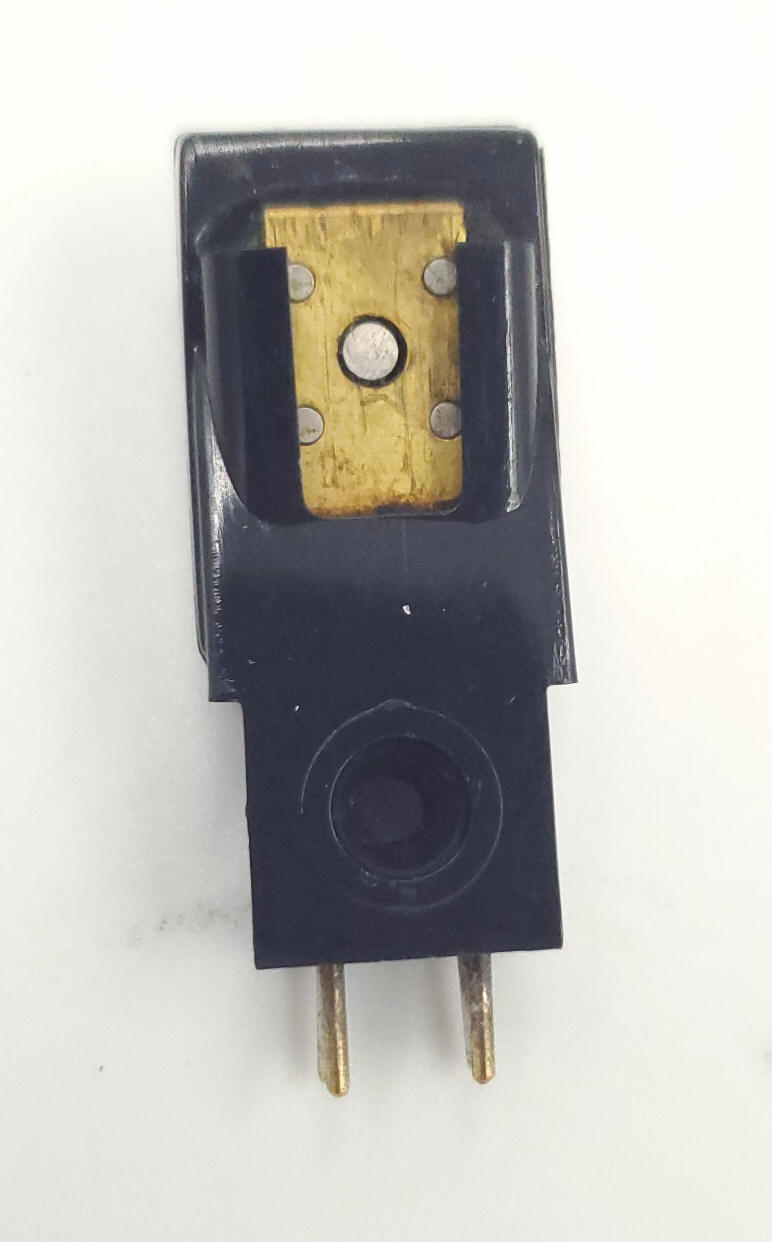

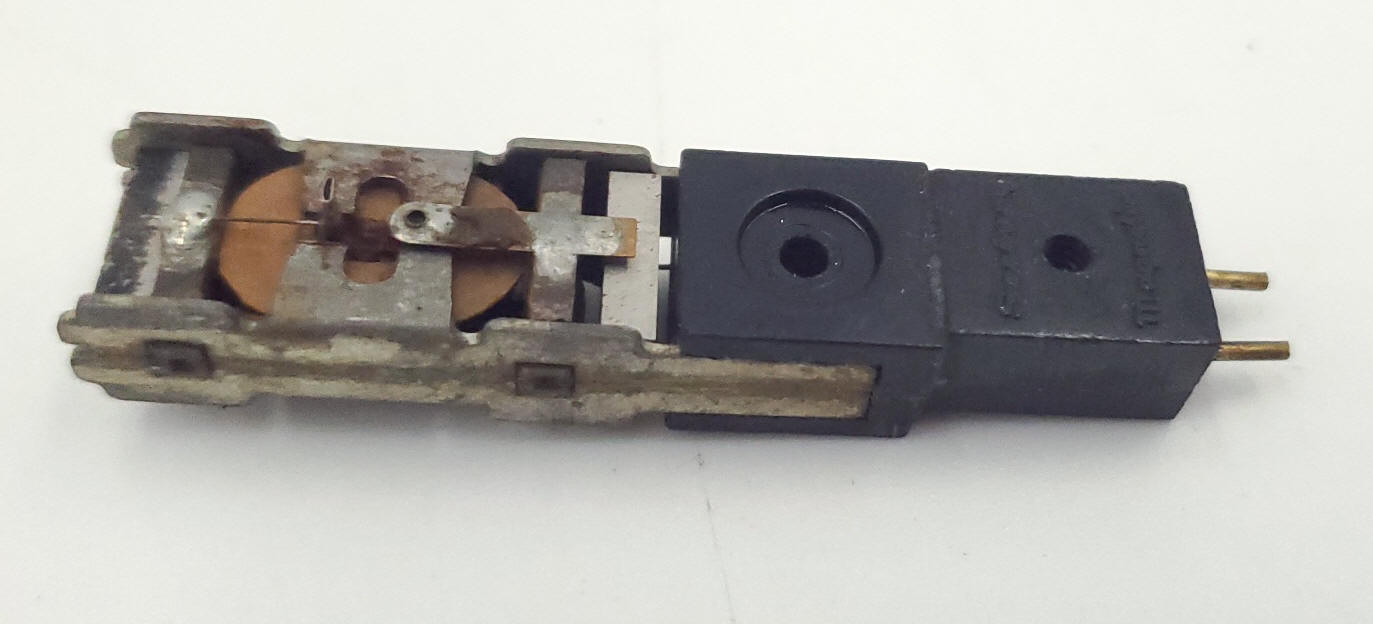

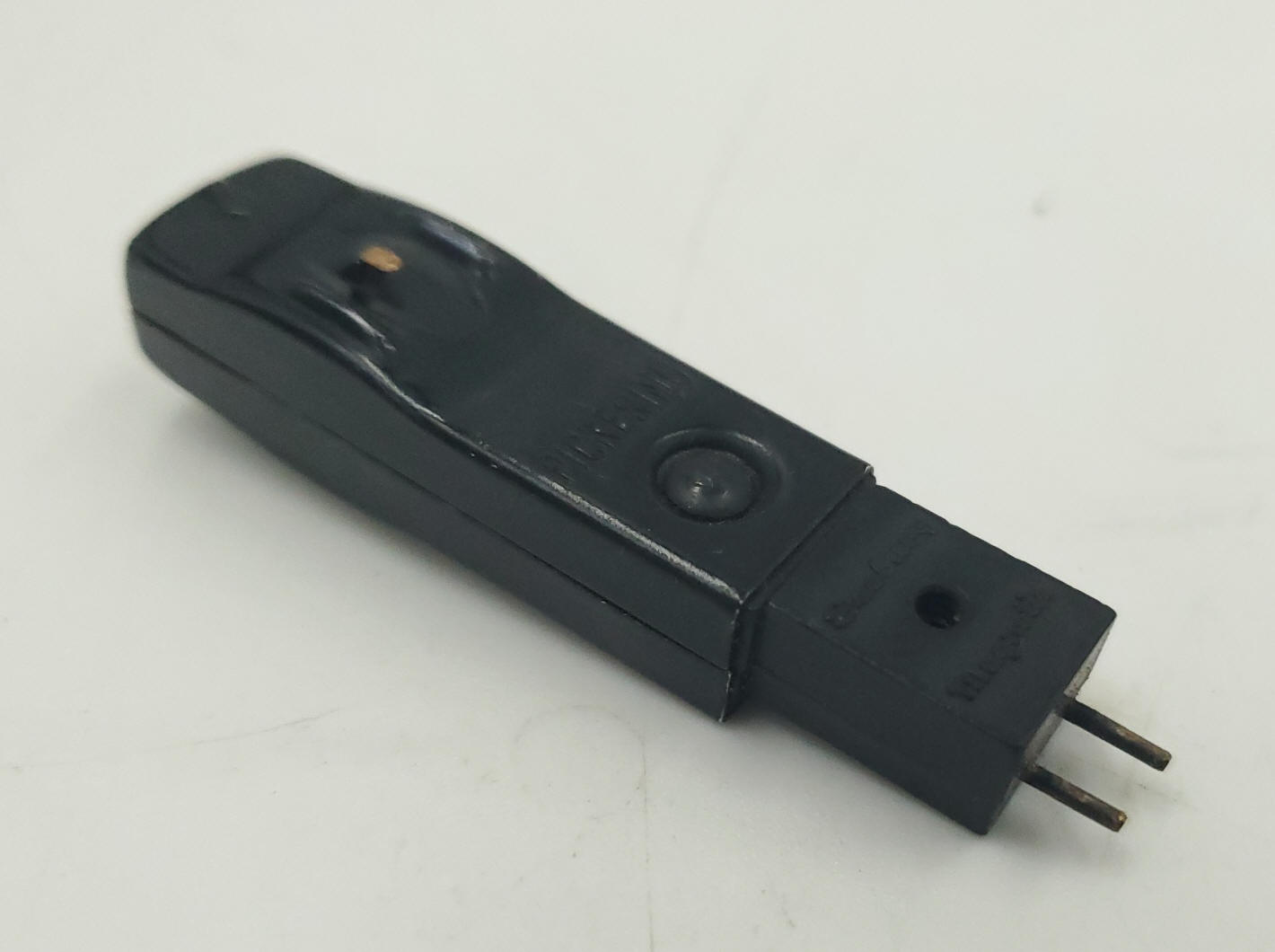

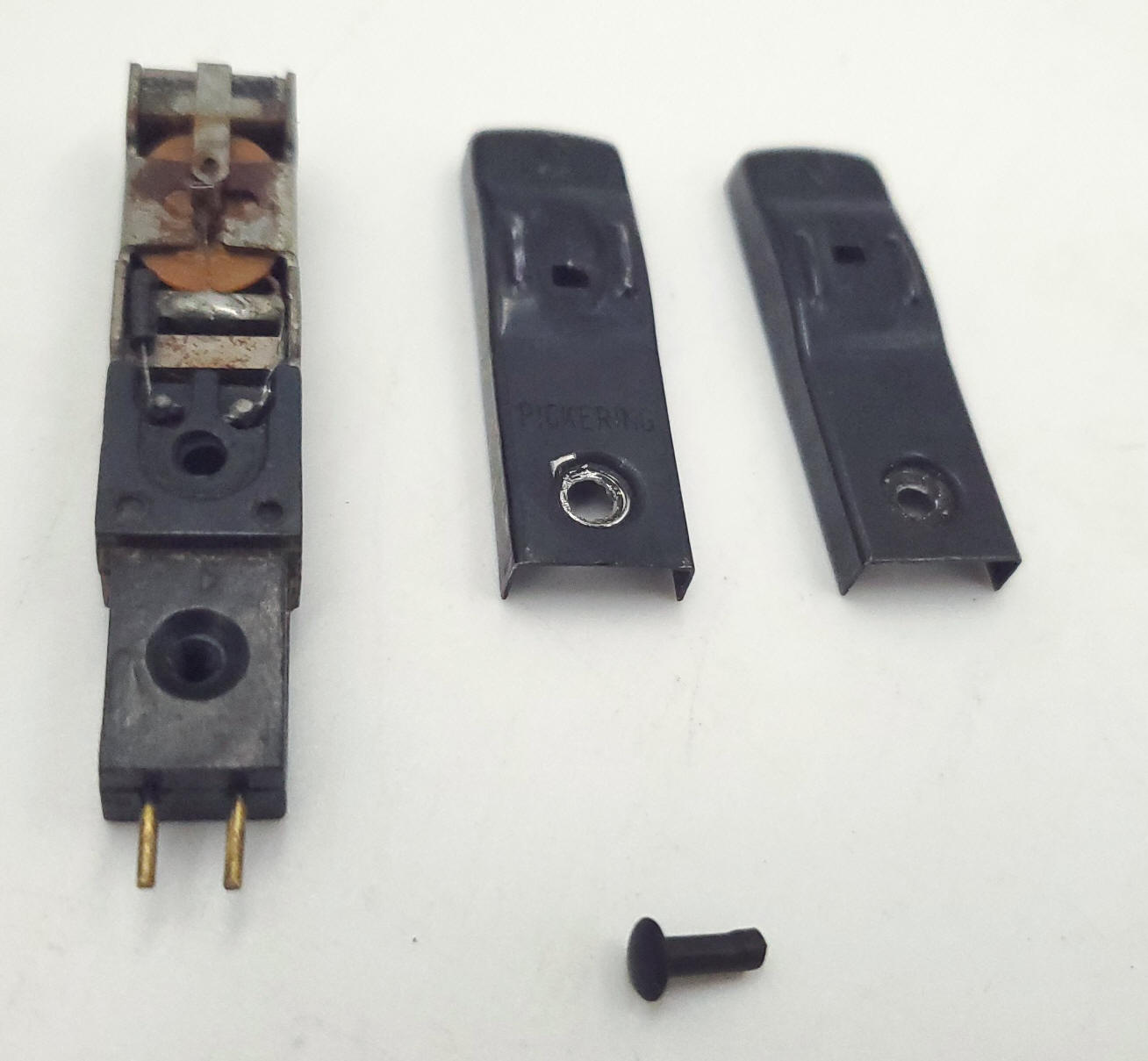

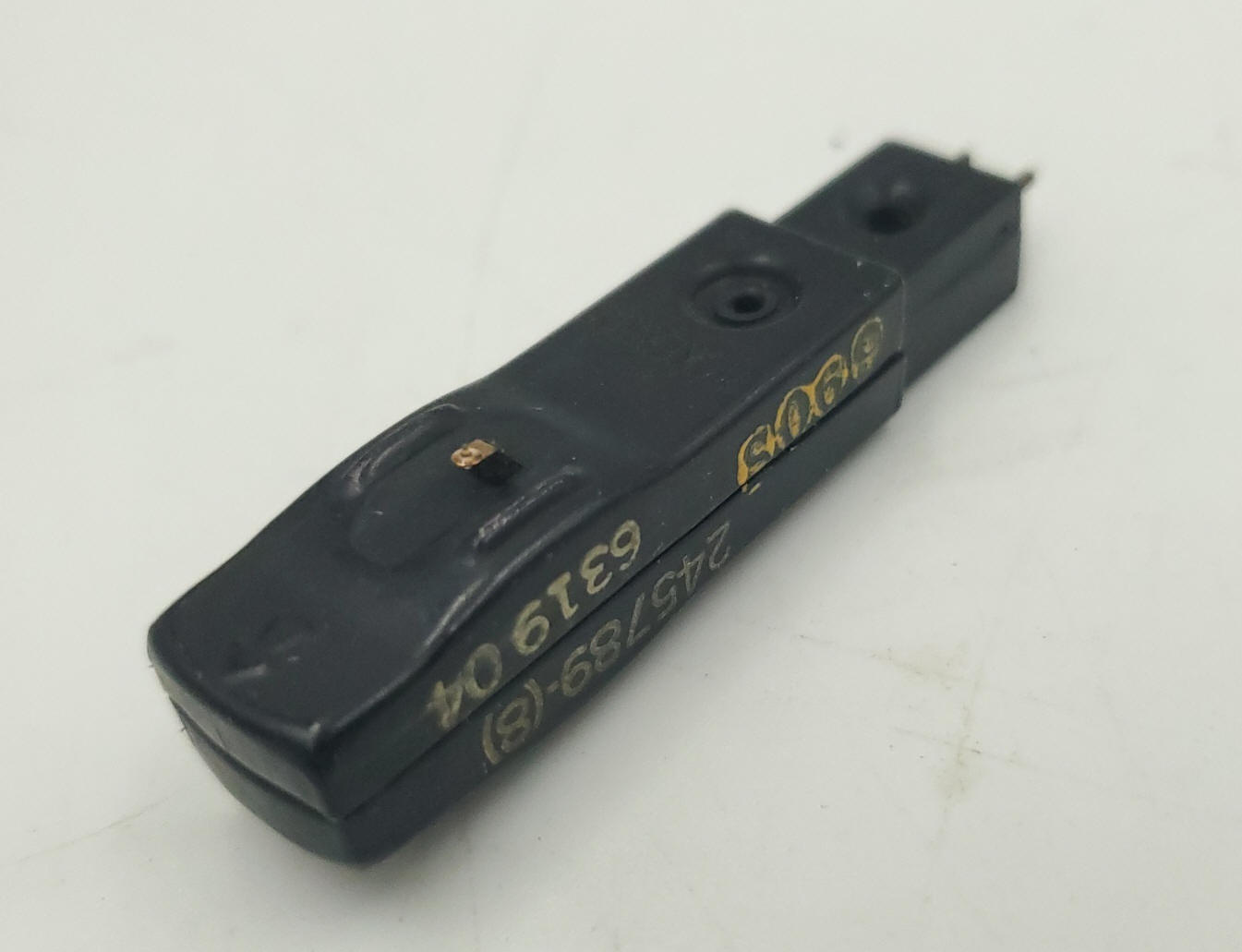

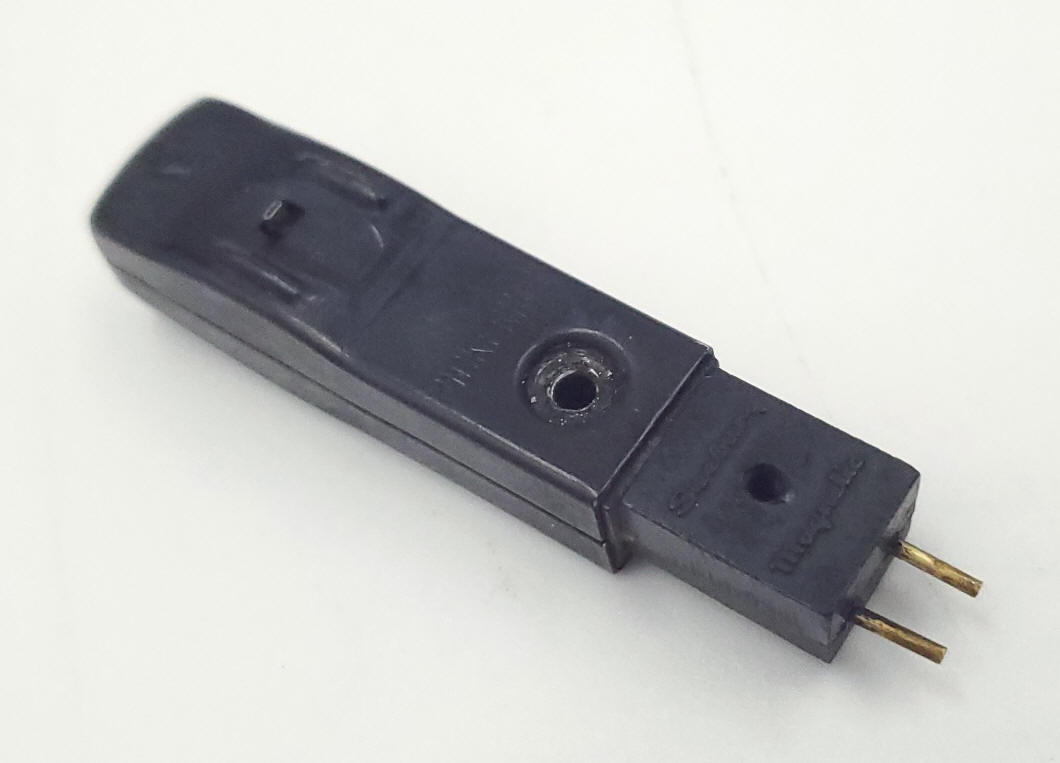

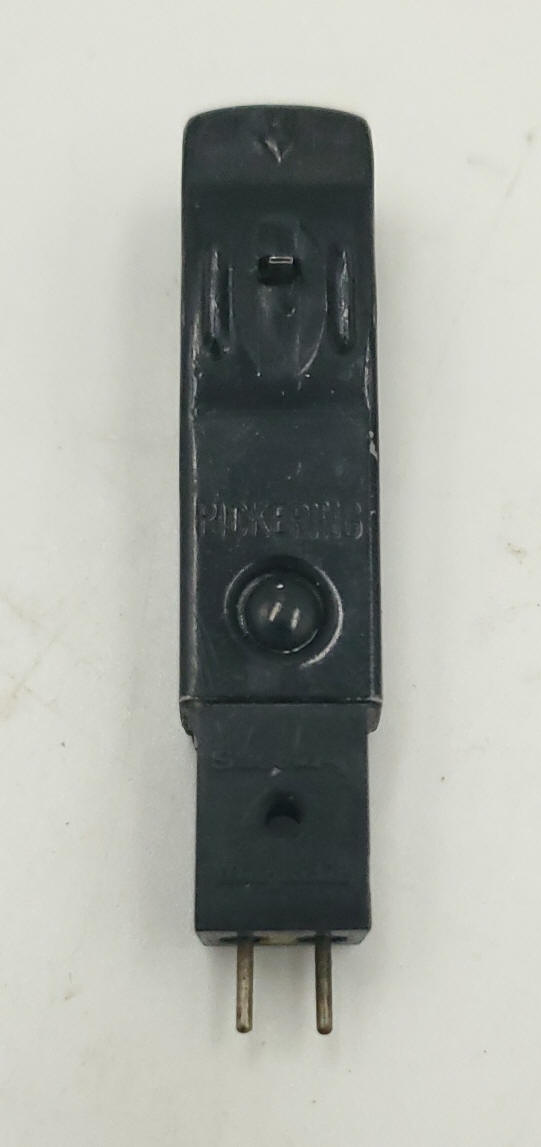

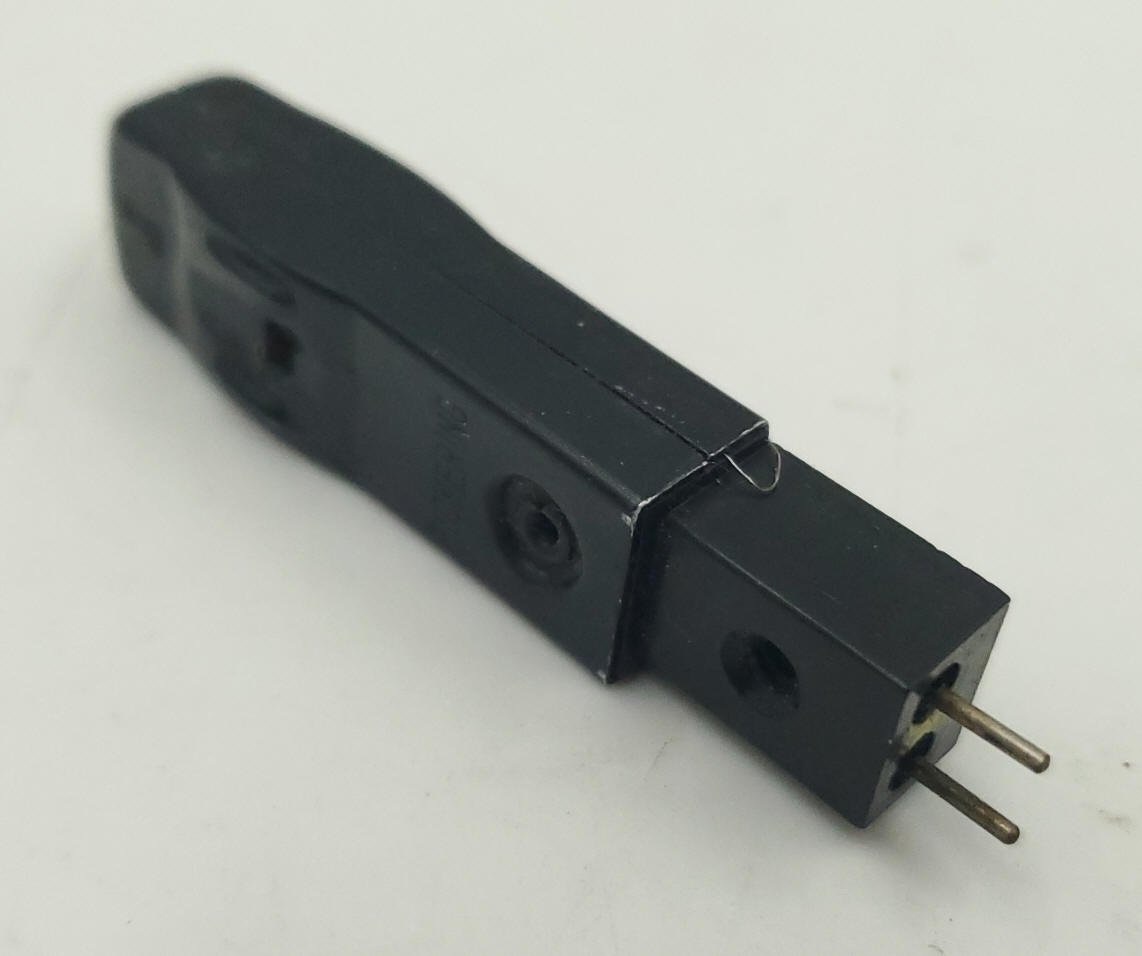

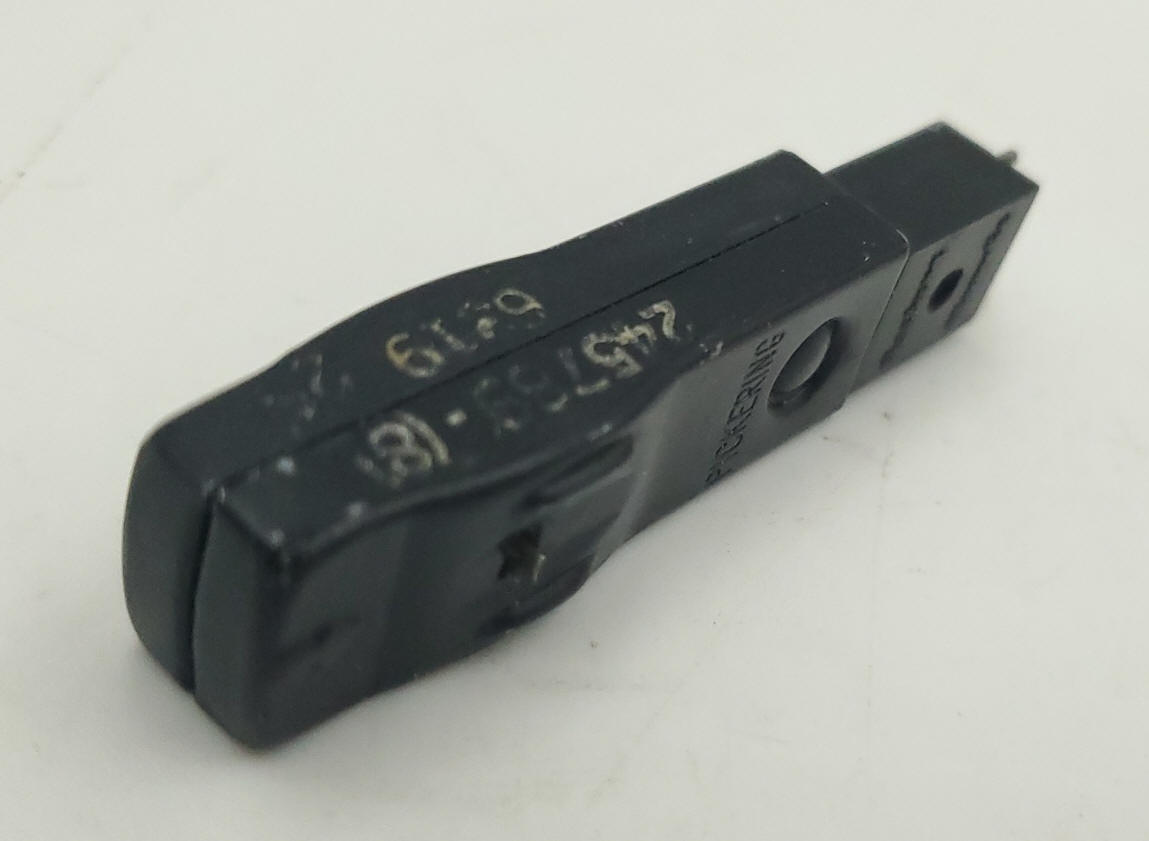

Pickering Mono Blackhead Cartridge

Seeburg Pickering Mono Blackhead Cartridge

Fits most 100B-201 models

This cartridge has been tested for output on both sides

It  does not have any needles installed, you can buy those new on site

You are purchasing the exact cartridge shown

$199.99

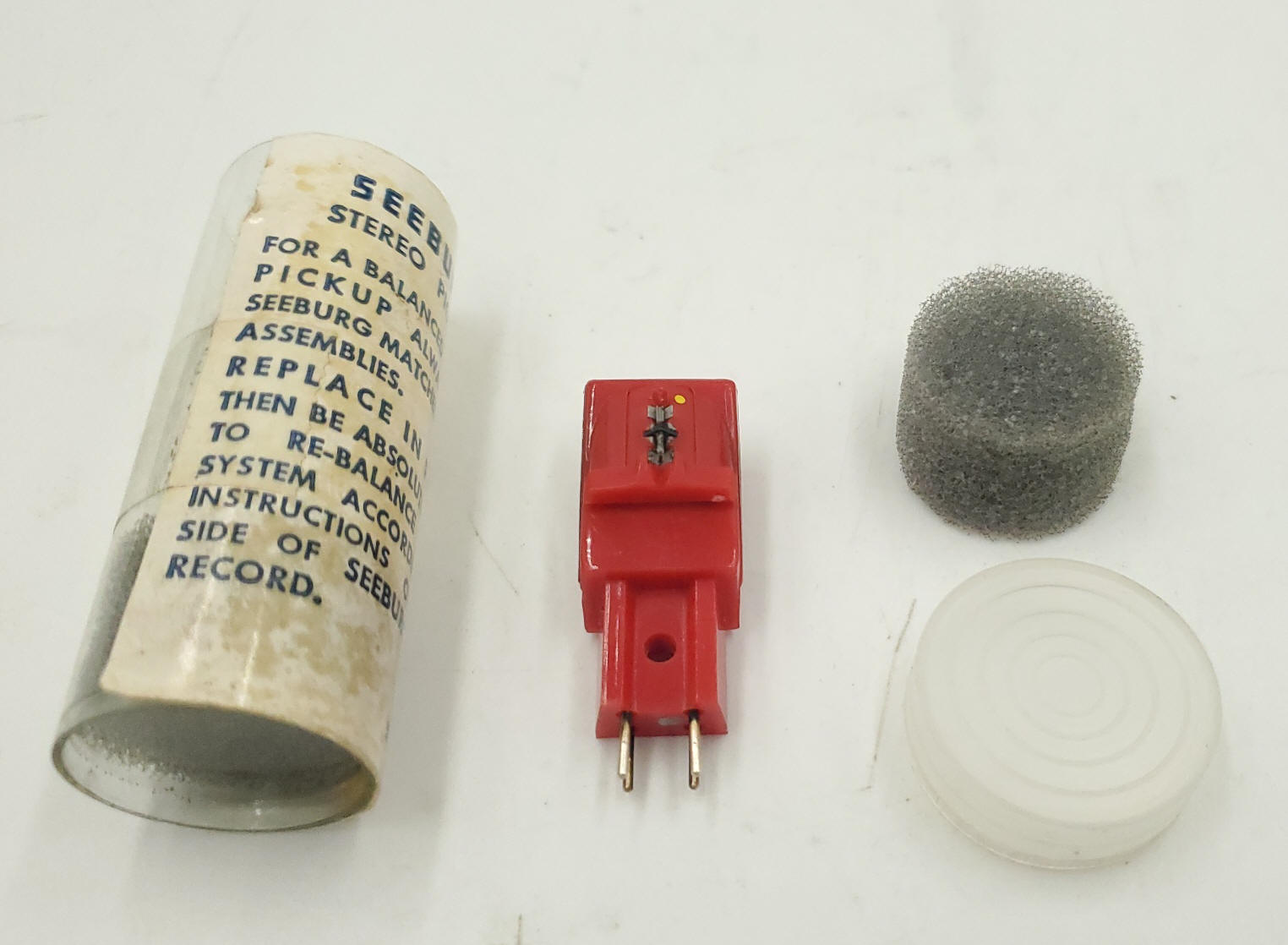

Pickering 370 Redhead Stereo BMS/BMC Cartridge

A Pickering 370 loaded with a pair of used original red .5 mil T needles that appear to be in good to very good condition

Original factory container is included

Originally used with Seeburg BMC/BMS 1000 BackGround Music Systems

This is a used item, it has been tested for correct output on both channels

May possibly be used with some Seeburg Jukeboxes, however the needless are .5 mil tip for 16 2/3 RPM records, rather then the .7 mil 45s and 33s require, so buy for jukebox use at your own risk.

You are purchasing the exactly what is shown

$375

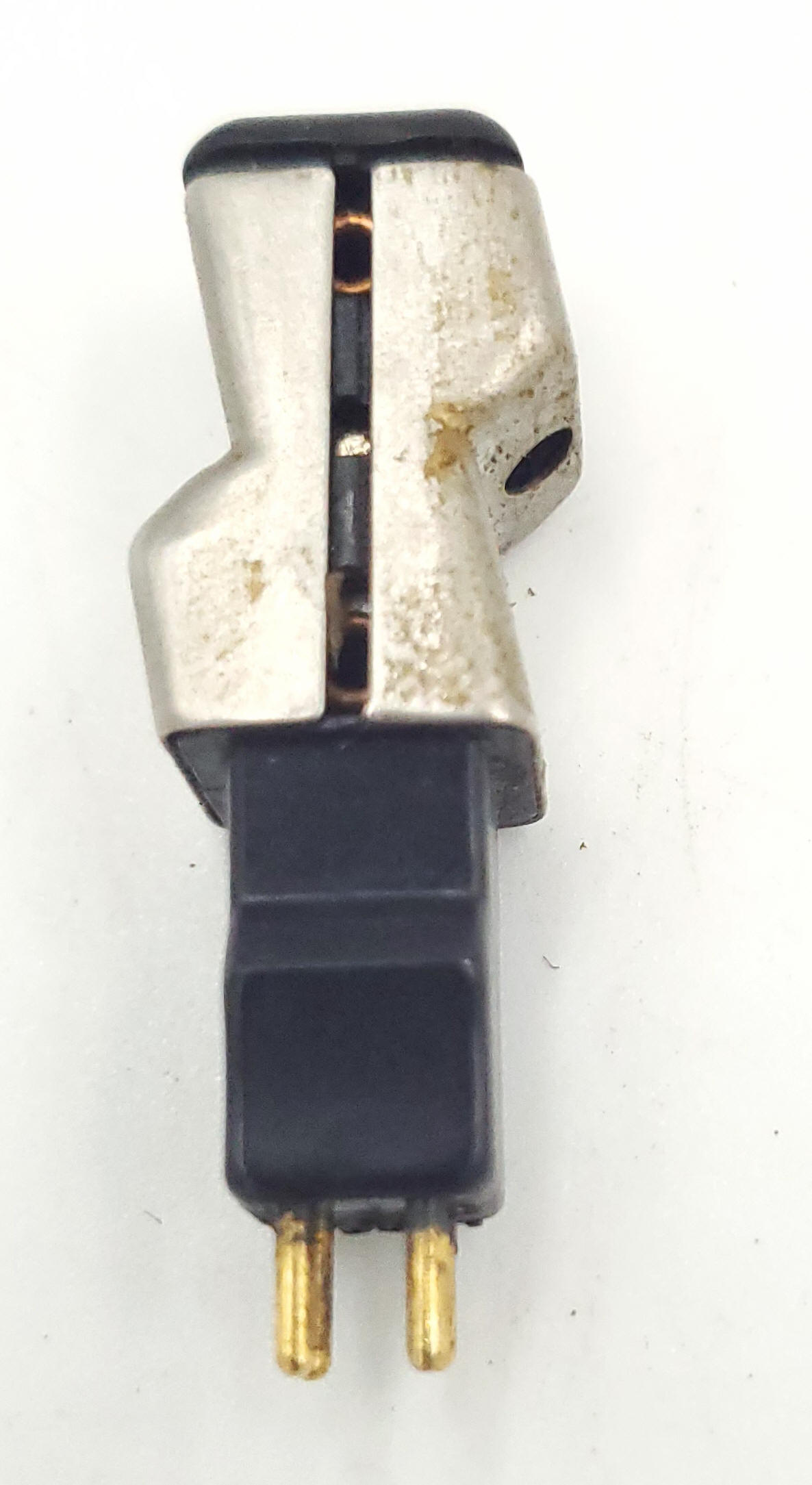

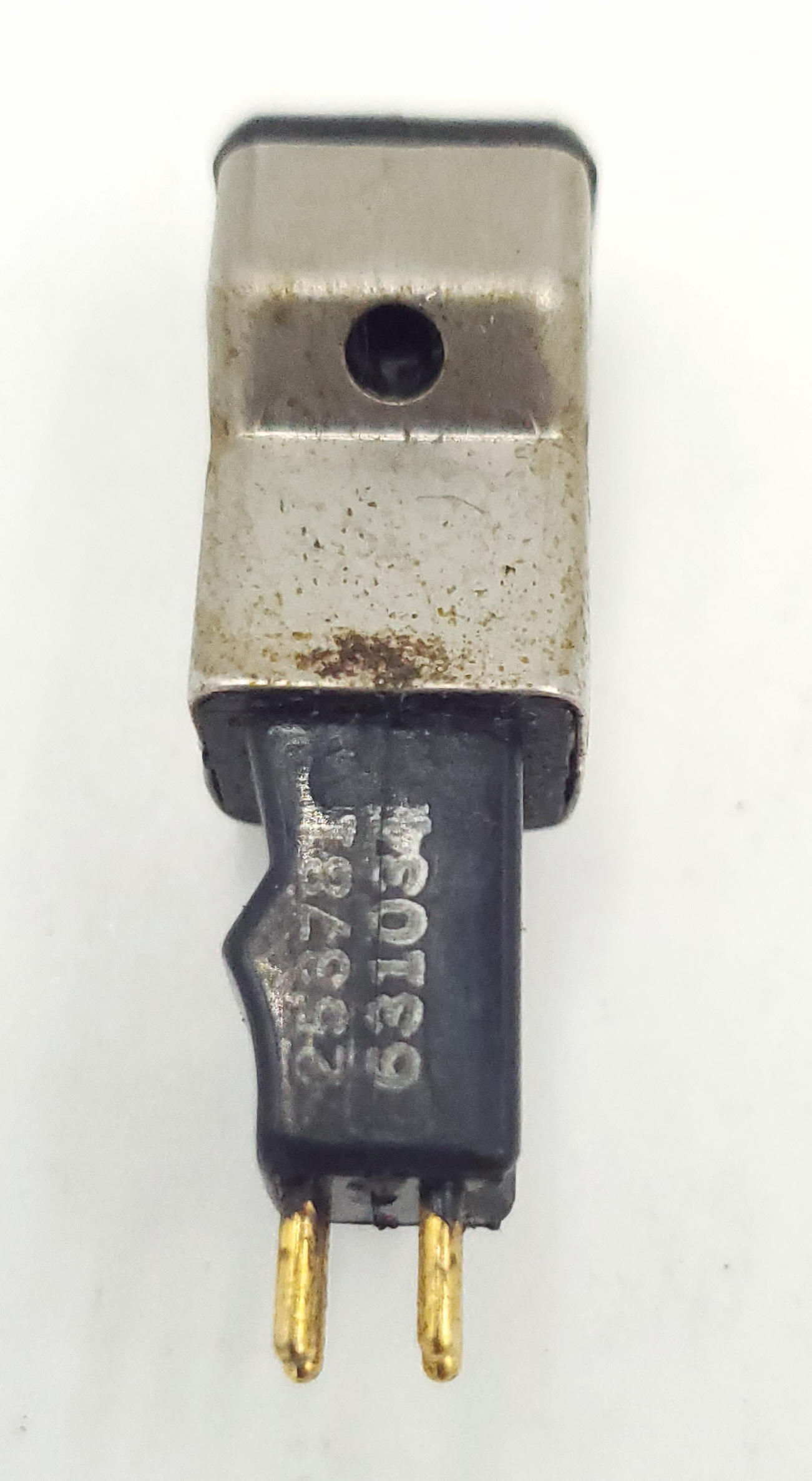

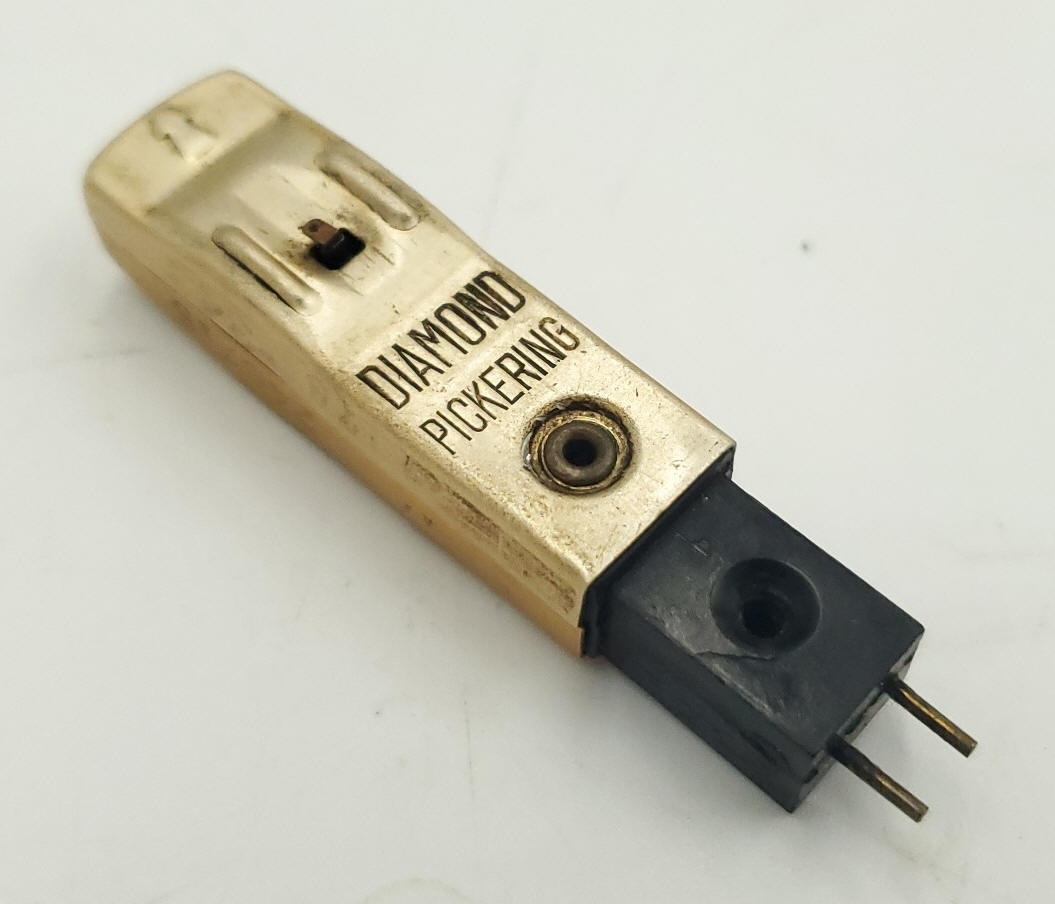

Pickering GoldHead Mono Cartridge

Fits  Seeburg 100B-201 models with 2 pin cartridge plug

Nice clean and tested cartridge with a pair of unknown used needles

You are purchasing the exact cartridge shown

$249.99

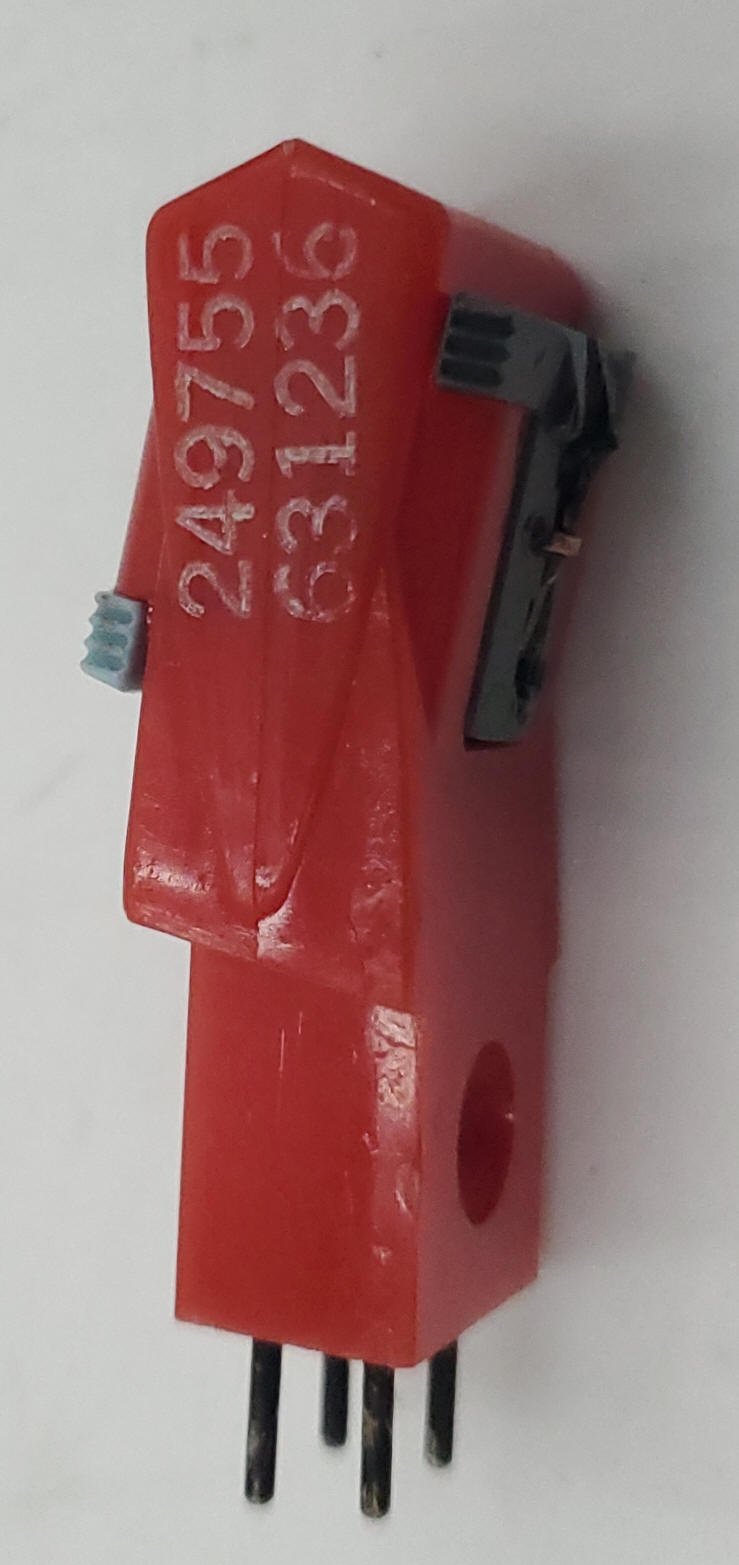

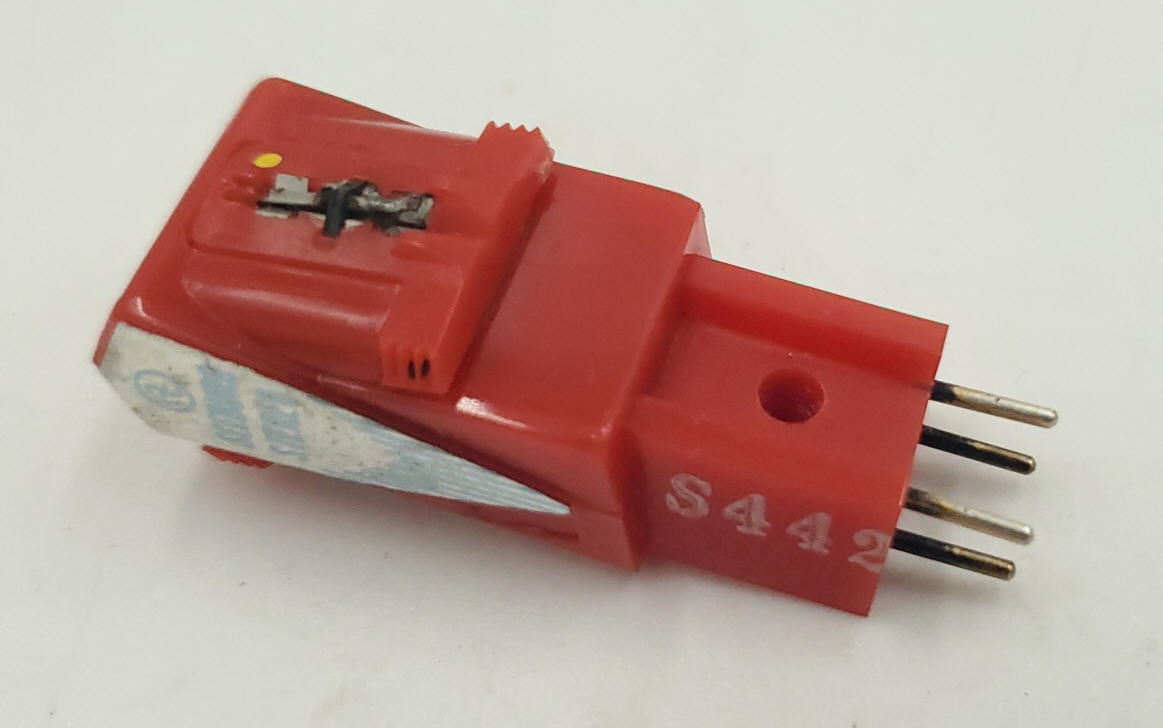

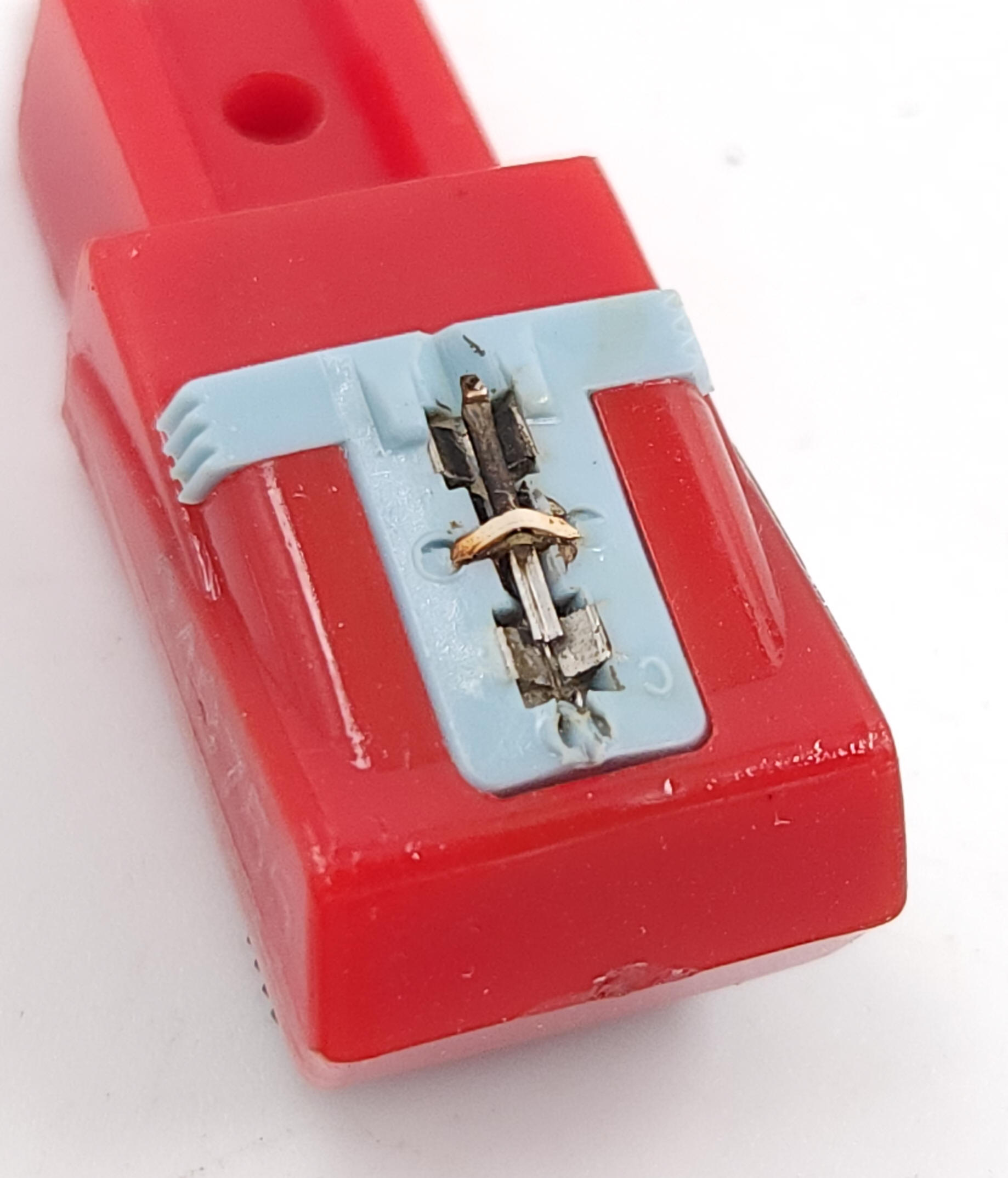

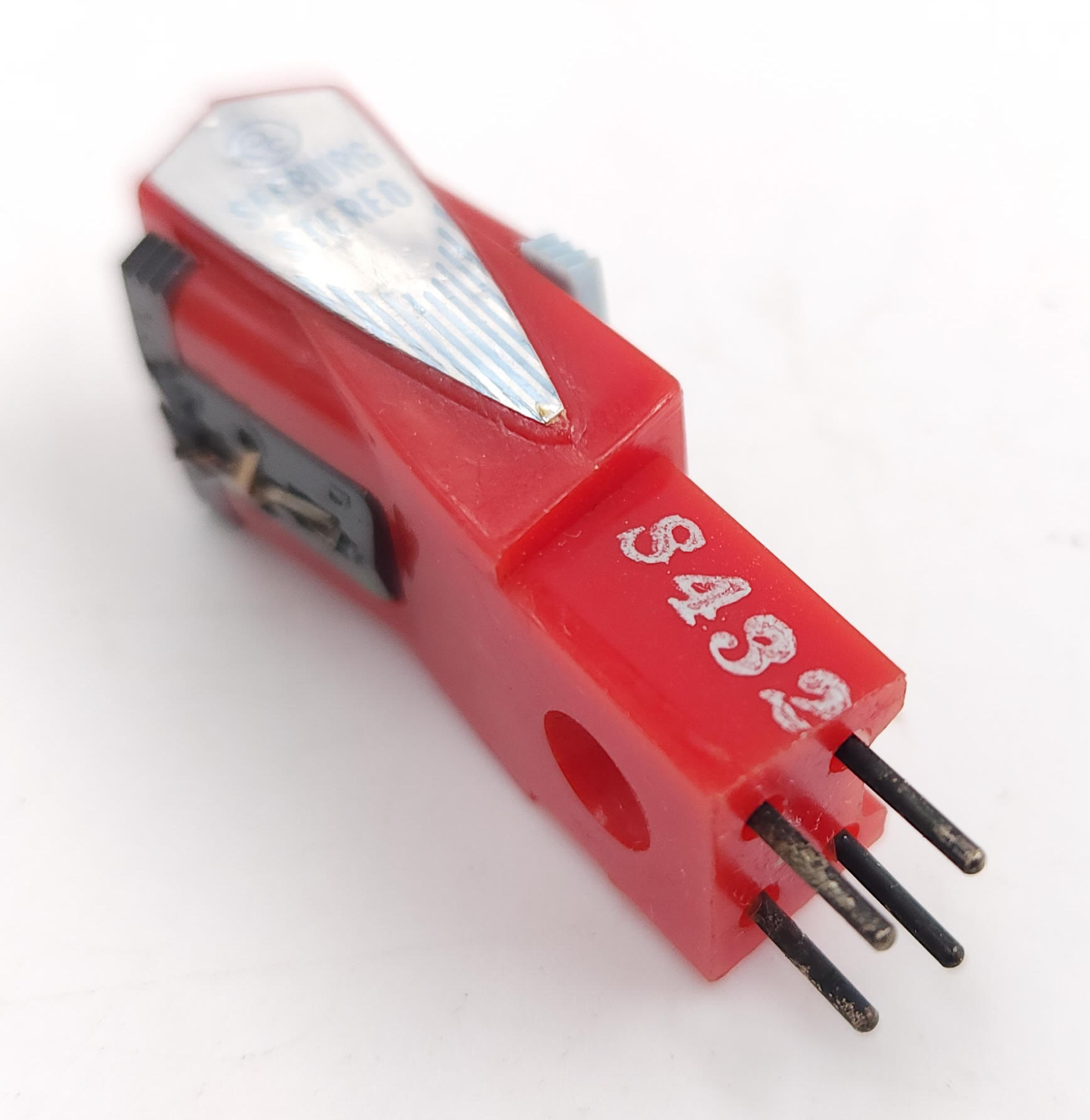

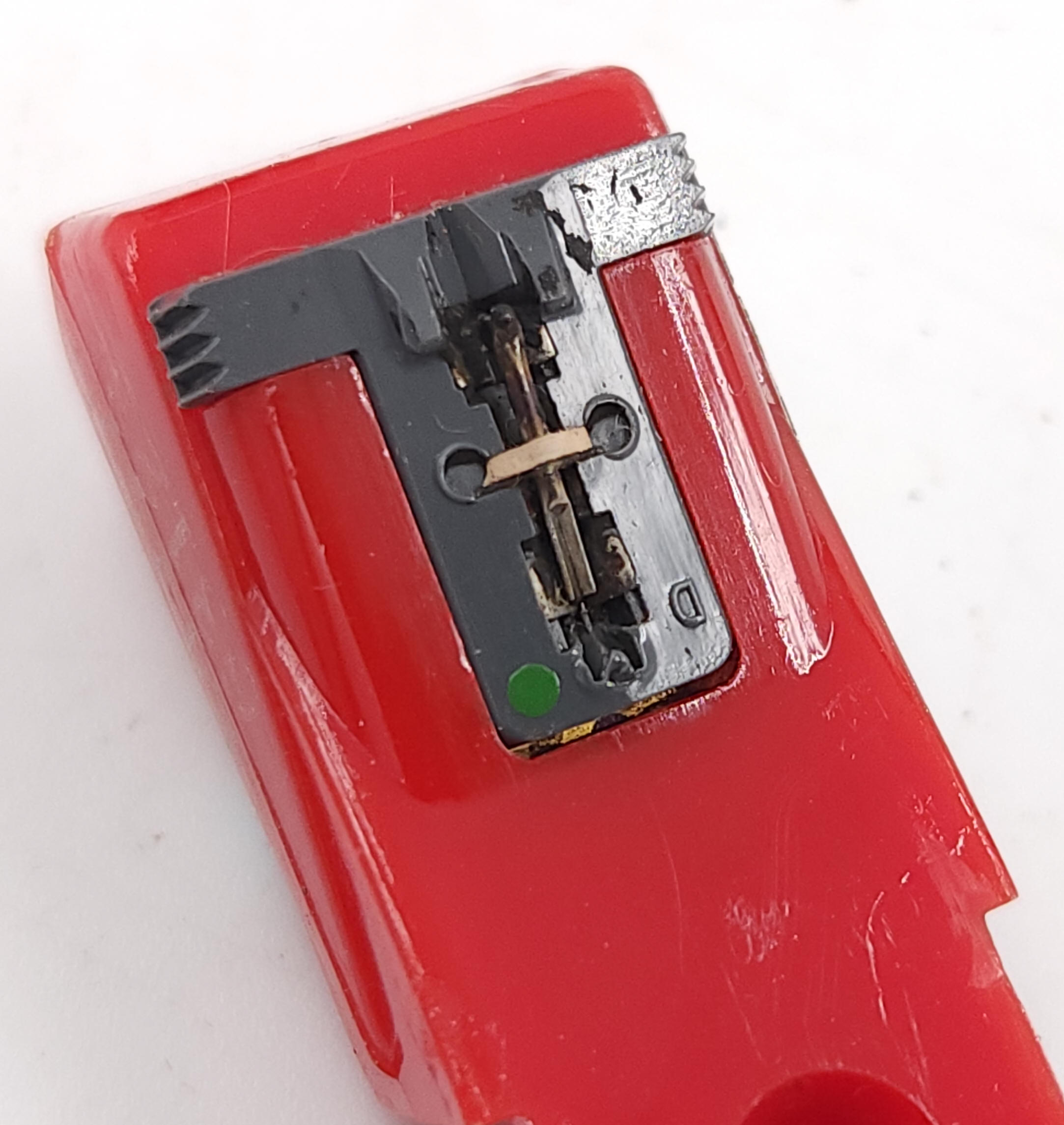

Pickering 370 Redhead Stereo Cartridge

This is a used item, it has been tested for correct output on both channels

Originally used with Seeburg

Q100/160, AQ100/160, Y100, AY100/160, DS100/160, LPC-1, LPC-480, APFEU Models

Can also be used with 220 & 222

Needles are used, the gray one is in fair condition, the blue one looks to be in poor condition and may be not usable at all, both are being sold as-is

You are purchasing the exact cartridge shown

 $190

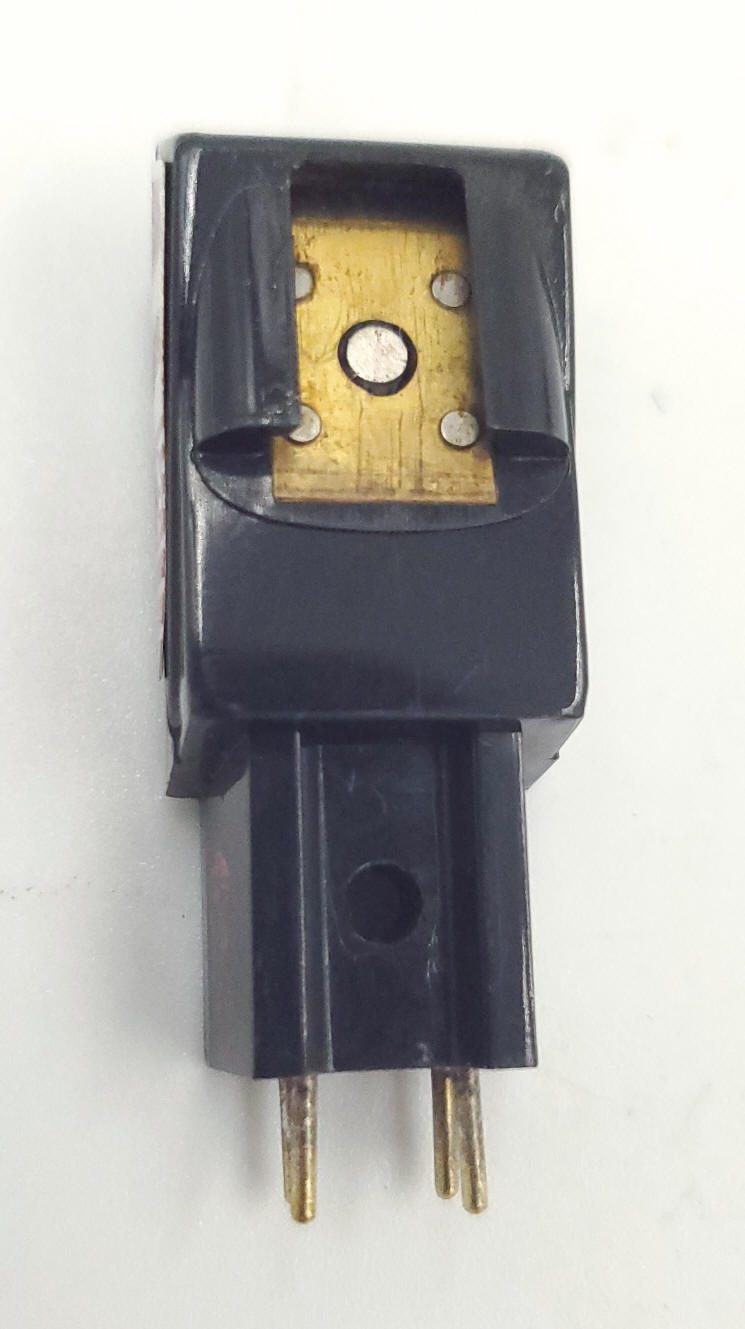

Pickering Blackhead Stereo Cartridge

This is a used item, it has been tested for correct output on both channels

Originally used on Seeburg 220 & 222 models

Will also fit the

Q100/160, AQ100/160, Y100, AY100/160, DS100/160, LPC-1, LPC-480, APFEU



You are purchasing the exact cartridge shown

SOLD

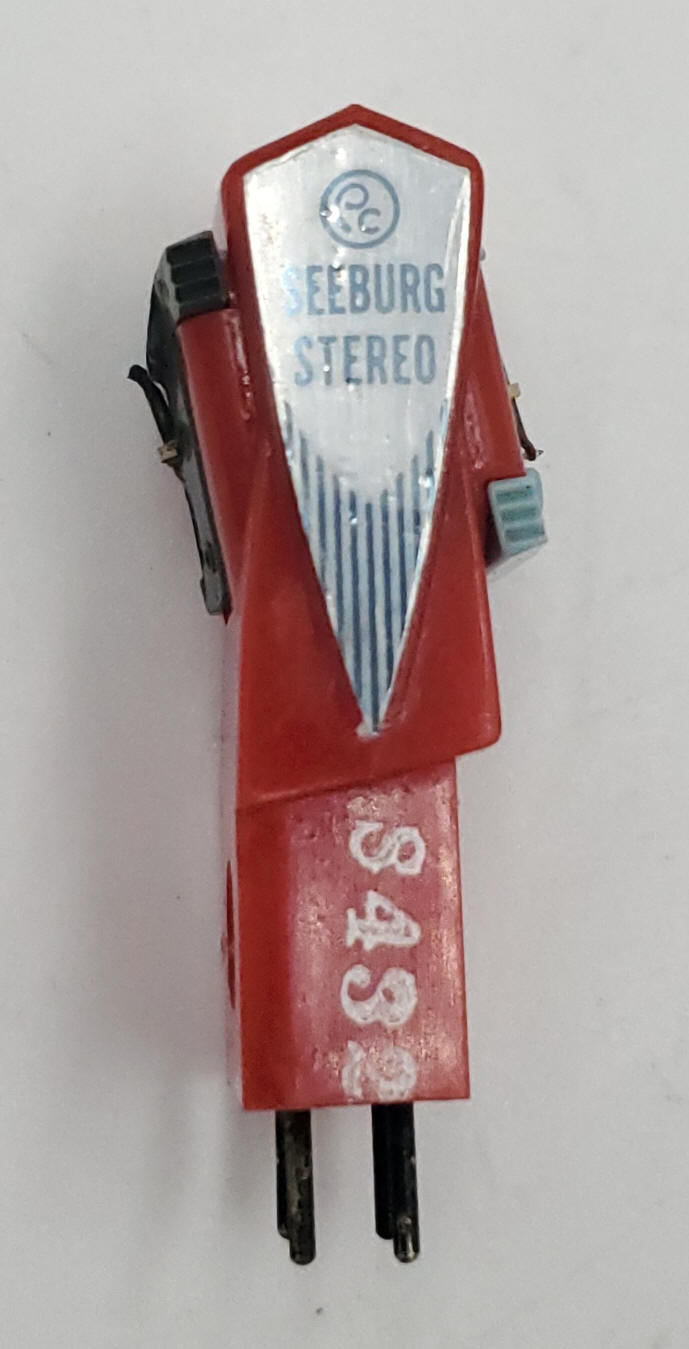

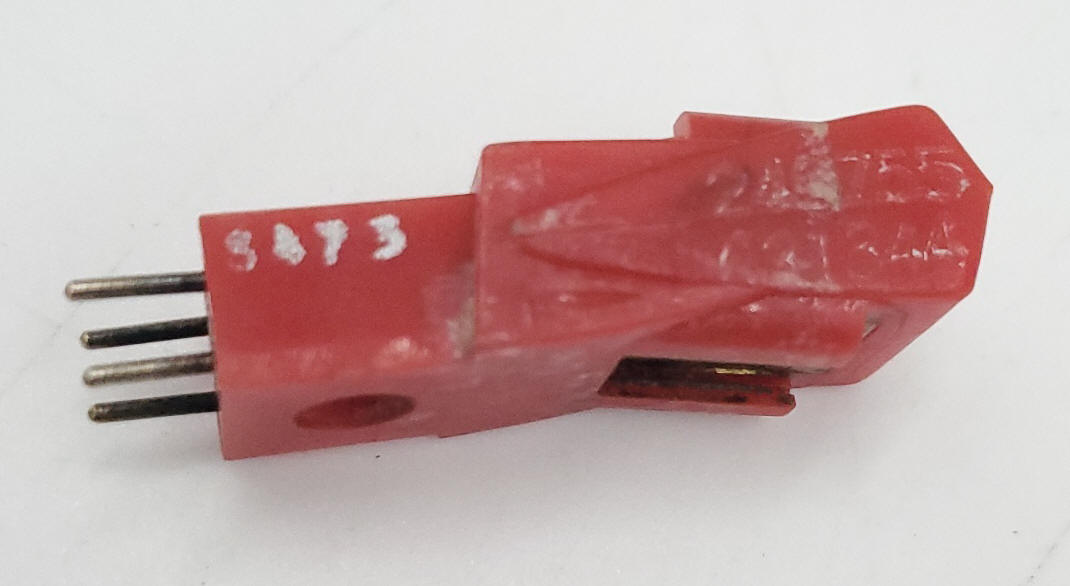

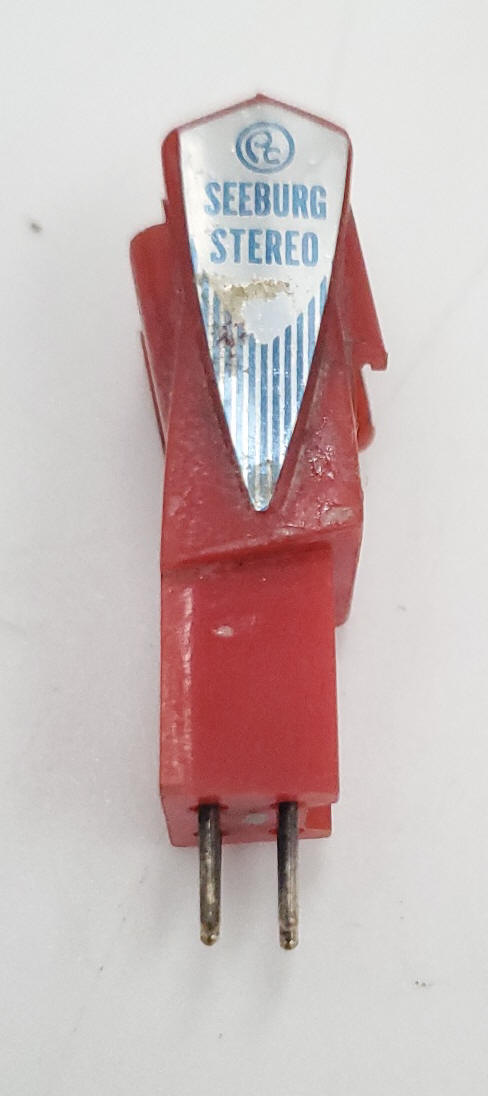

Pickering 370 Redhead Stereo Cartridge

This is a used item, it has been tested for correct output on both channels

Originally used with Seeburg

Q100/160, AQ100/160, Y100, AY100/160, DS100/160, LPC-1, LPC-480, APFEU Models

Can also be used with 220 & 222

Item received may very slightly from item pictured

You will receive the best possible cartridge available at the time of purchase

 $125

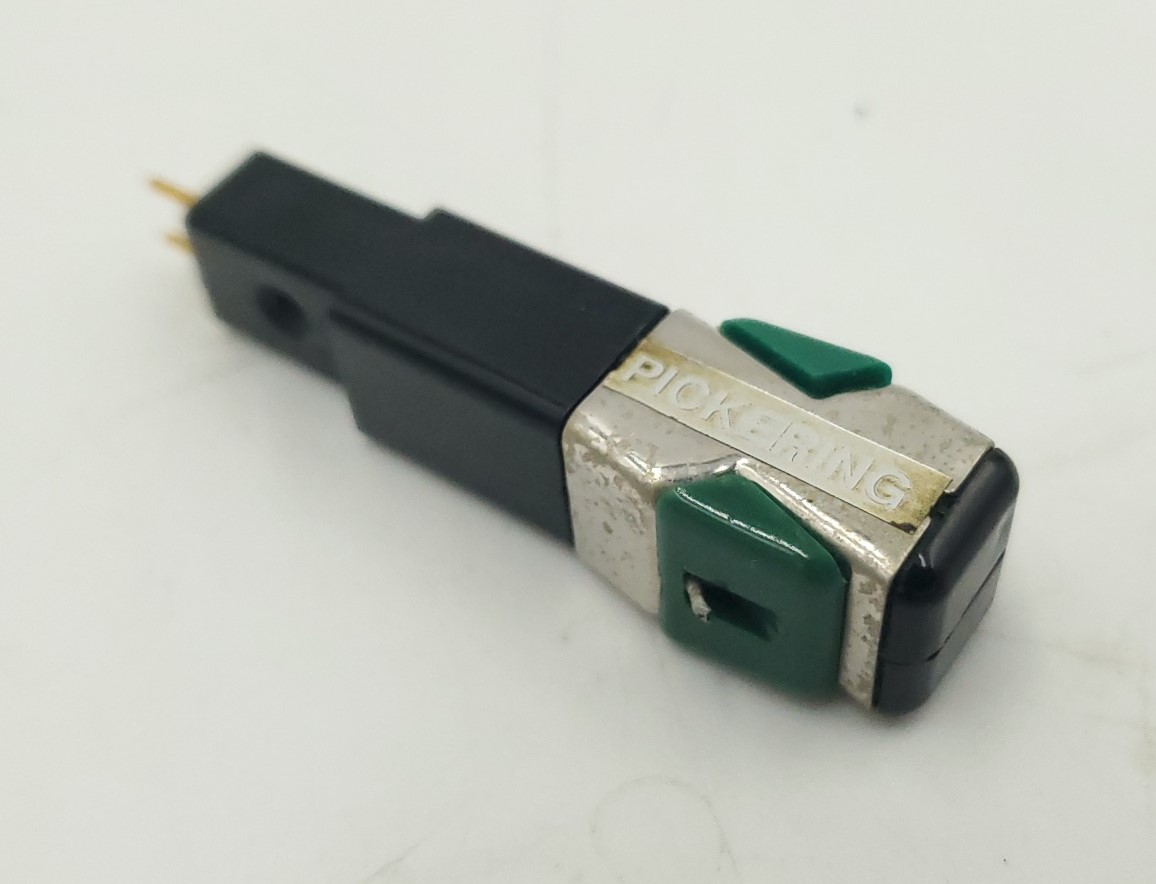

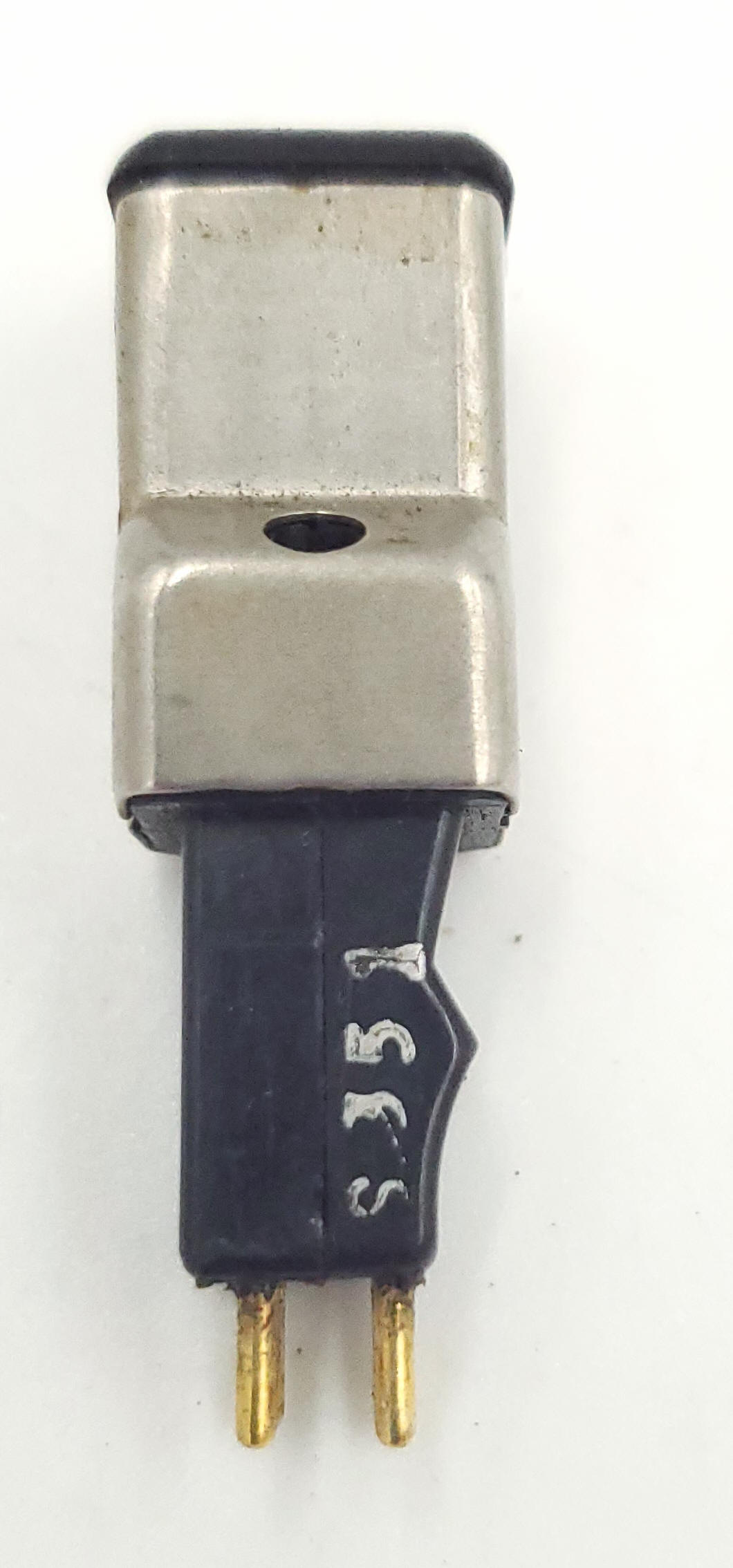

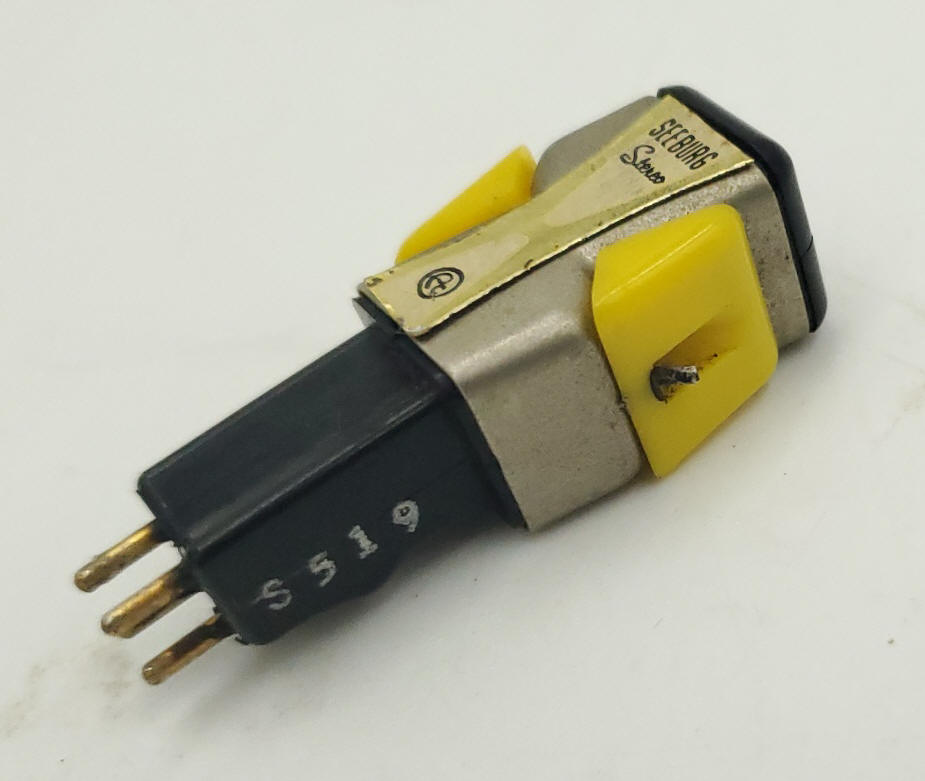

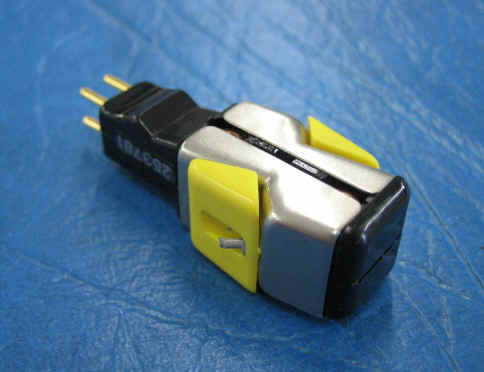

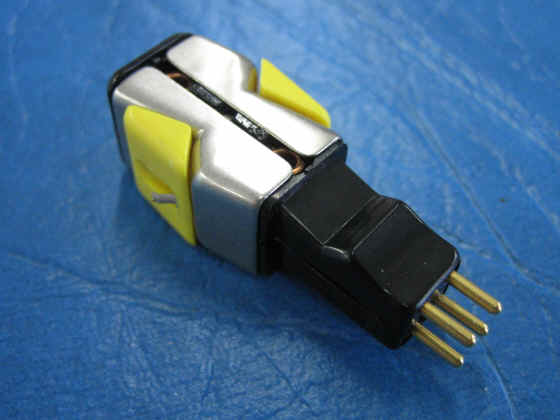

Pickering 340D Stereo Cartridge

This is a used item, it has been tested for correct output on both channels

The Pickering 340D stereo cartridge fits all 160 selection Seeburgs from 1967 on up including:

SS-160, S100, LS1, LS2, LS325, USC1, USC2, SPS160, SPS2, SL100, SX100, STD1, SQS-160, STD2, SQS-2, STD3, STD4, SMC1/2/3, FC1-2 & VMC200

Also fits APU (Album Player Units), AMS and HSC/6000 series (Home Stereo Console) Models

item received may very slightly from item pictured You will receive the best possible cartridge available at the time of purchase

Each cartridge will be tested, have both side stickers and include a pair of used but untested/non guarantied needles

$199
