Replacement Cartridges for Rockola Jukeboxes

The Model P-51 Replacement Cartridge.

This brand new cartridge is designed to replace the now out of production Astatic #51 originally found in 1428-1465 models.

(Will also work in earlier 30's & 40's models with converted tone arms.)

It's very close to an exact replacement and is available in two versions, one for 45's and one for 78's.

Max recommended tracking pressure: 10 Grams

(Note: Fitment my require some slight modifications)

Cartridge comes complete with Sapphire needle and solder lugs as shown $19.99

Version #1 For use with stereo or mono 45 RPM records (preloaded with .7 mil stereo compliant needle)

Version #2 For use with original and reproduction 78 RPM records (preloaded with 2 mil needle)



Version #3 For use with original 78 RPM records (preloaded with 3 mil needle)



#P51 78 RPM Replacement Needles

Sapphire 2 mil tip $7

Diamond 2 mil $14

Sapphire 3 mil tip $7

Diamond 3 mil $14

45 RPM Replacement Needles

Diamond .7 mil tip $9

Sapphire 1 mil tip $7

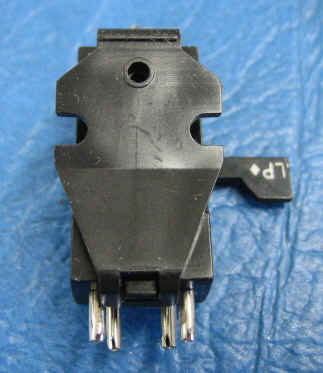

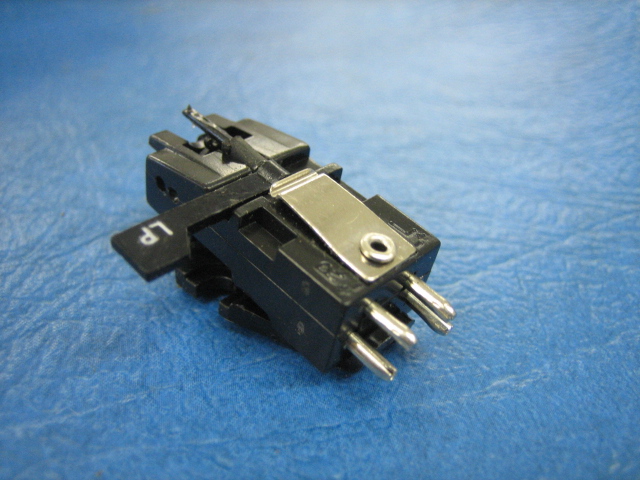

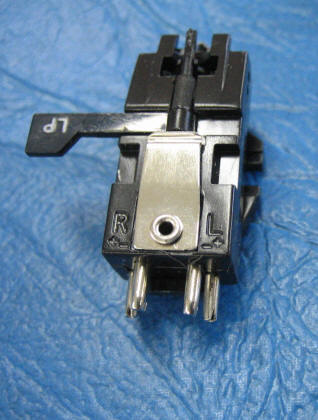

Sonotone 65T

The Sonotone 65T provides a good balance of sound quality and economy.

It's Designed to replace ceramic cartridges like the Astatic models 15 & 17 found in many Rockola's from the 1465 thru the 1495, 404 thru 418 and all 100 selection models thru 445.

While it is a stereo cartridge it can be wired with the channels in parallel for use in the early mono sound systems.

(Note: This is not suitable for replacing Shure M77 or M44 magnetic type cartridges original to many Rockola models starting with the 424)

(Note: Fitment my require some slight wiring modifications)

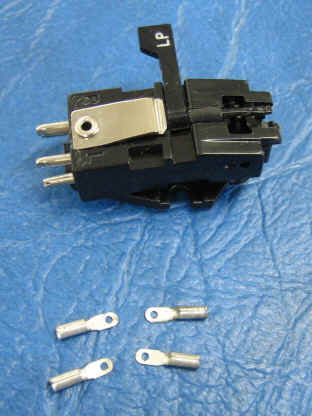

Comes complete as shown with mounting bracket and 4 solder lugs. $15

Needle is .7 mil stereo on one side, 3 mil 78 on the other.

Cartridge is no Longer Available

65T Replacement Needle

Exact Replacement, .7 mil Diamond Tip Stereo Compliant needle on both sides: $9 Each

The Model P-132 Cartridge

The P-132 is a higher quality replacement to the 65T above. Designed to replace ceramic cartridges like the Astatic models 15 & 17 found in many Rockola's from the 1465 thru the 1495, 404 thru 418 and all 100 selection models thru 445.

While it is a stereo cartridge it can be wired with the channels in parallel for use in the early mono sound systems.

(Note: This is not suitable for replacing Shure M77 or M44 magnetic type cartridges original to many Rockola models starting with the 424)

(Note: Fitment my require some slight modifications)

Comes complete with solder lugs and diamond tip needle $20

Optional 45 / 78, diamond .7 mil / sapphire 3 mil needle for P132  $8

Standard 45 stereo compliant replacement .7 mil diamond needle for P-132  $8 Each

Models F-Continental Mono or Stereo

The Pickering NP/AC - Stanton 400V3 cartridge

The NP/AC - 400V3 is no longer available.

It has been replaced with an updated version, see the 500V3 in the next listing down.

NP/AC Commercial Duty Replacement Needles

Diamond tip for 45/33 play $15



Diamond tip for 78 play $19



The 500V3 is Stanton's latest release in high quality magnetic cartridges. It replaces the old outdated NP/AC - 400V3 models.

It has the highest output in it's class and has the strongest construction, giving it the strength to stand up to the tough demands of jukebox use.

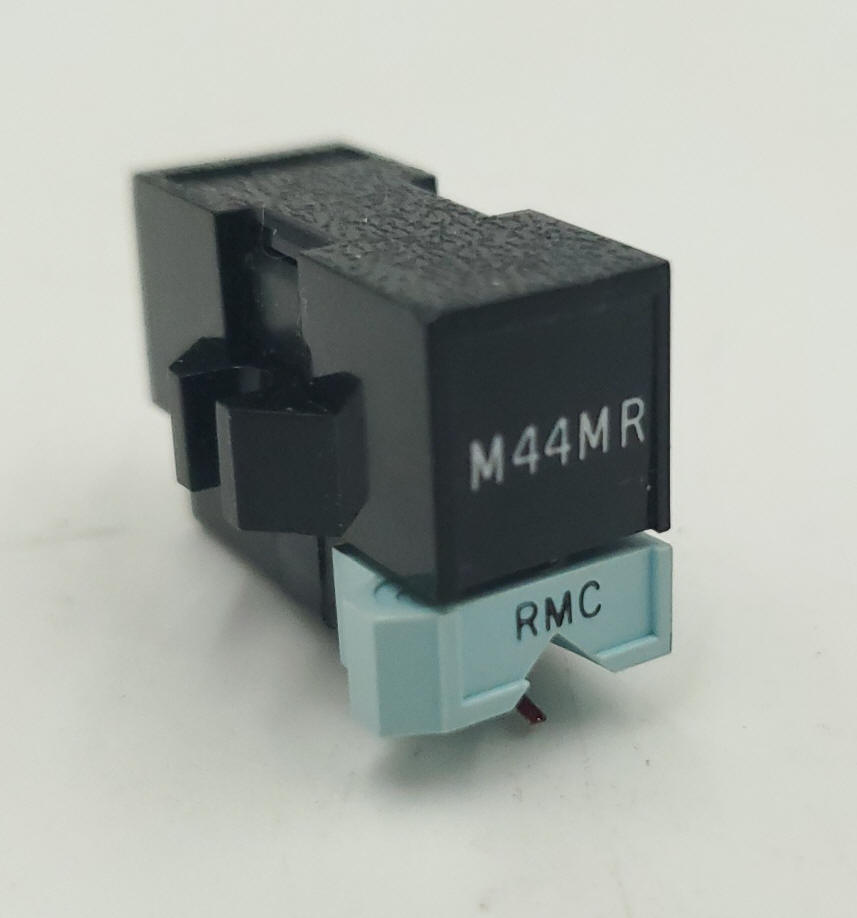

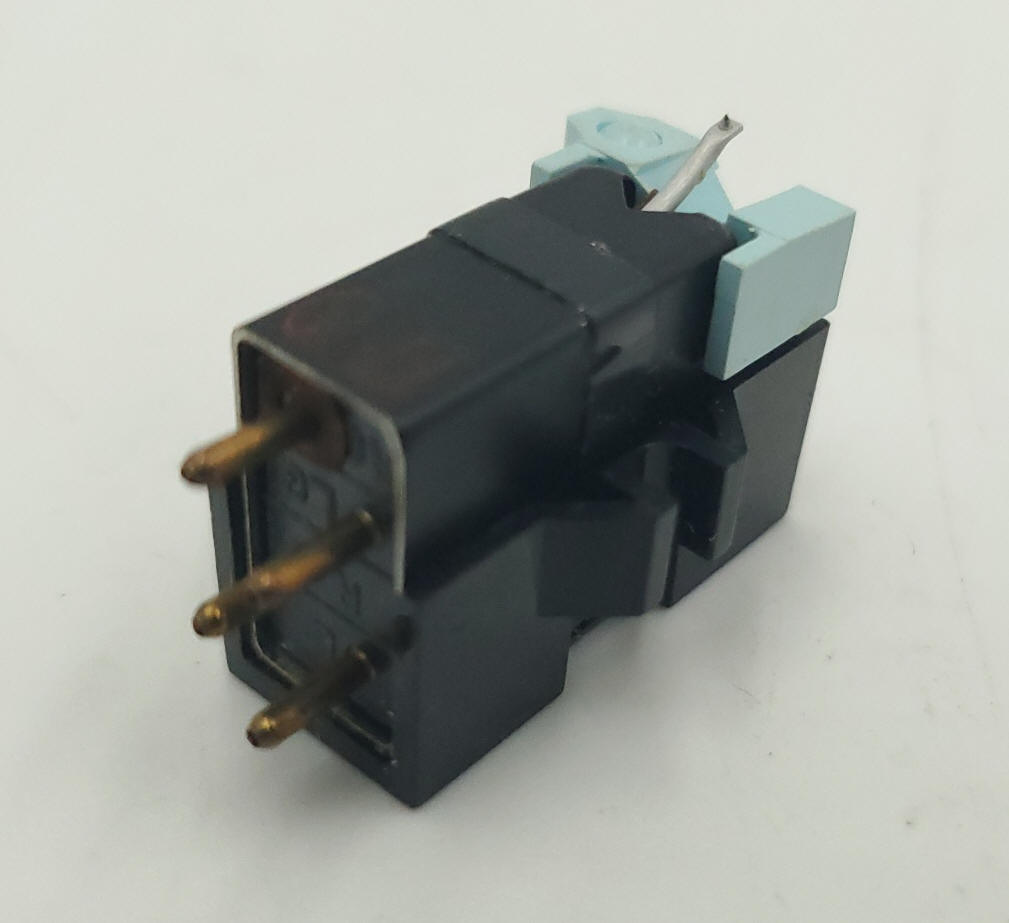

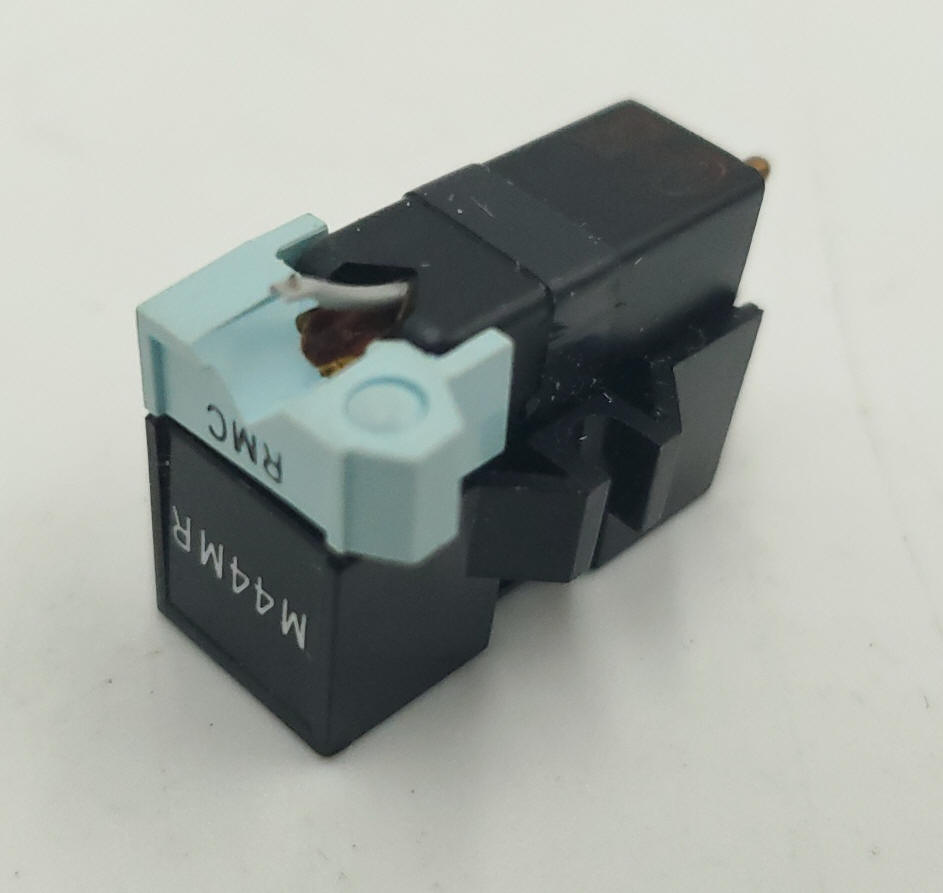

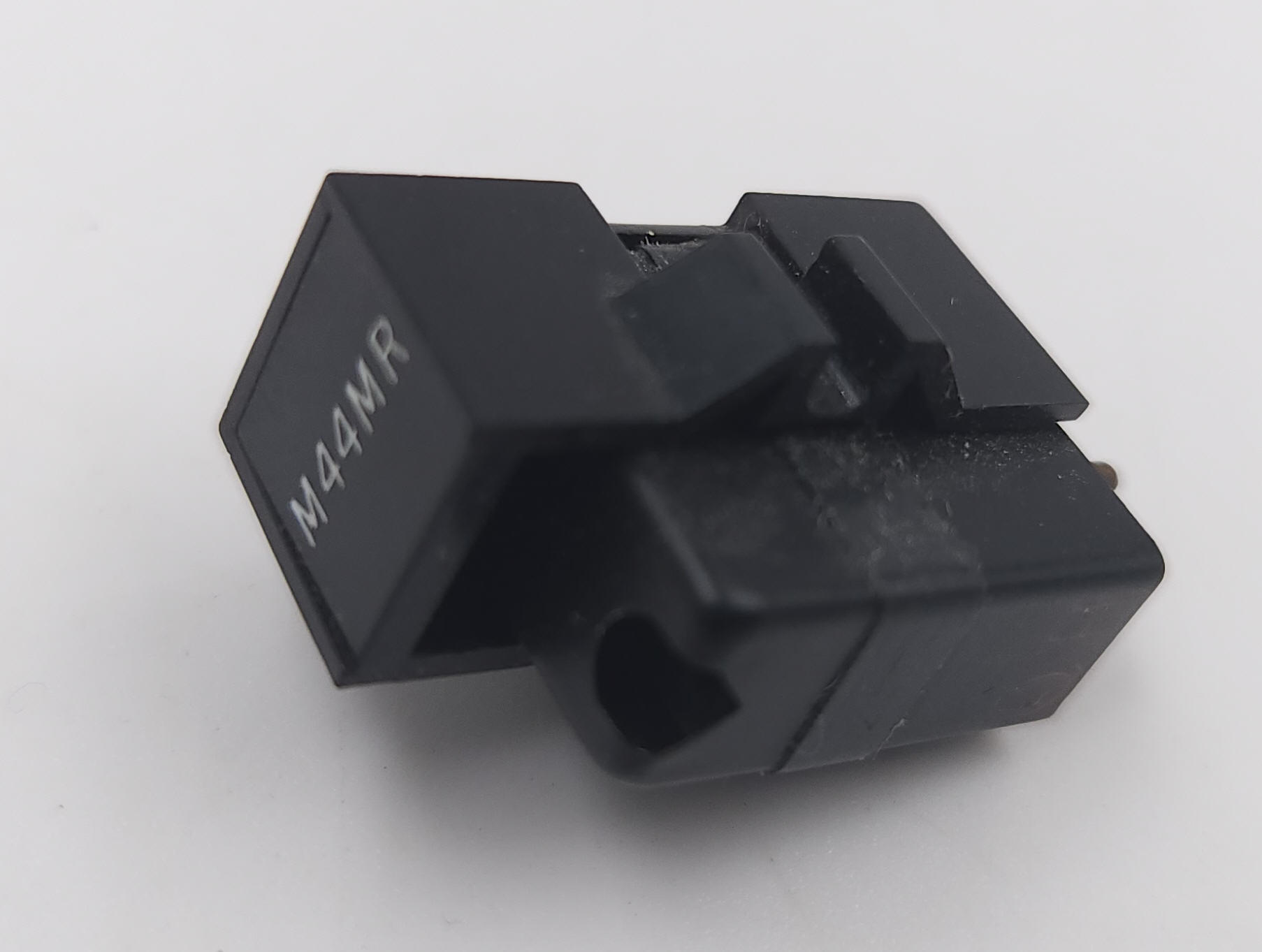

A rugged replacement for the Shure M44 or M77 magnetic cartridges found on many 60's models and all later model Rockola's.

This is a 4 pin stereo cartridge, wire in parallel for use on mono equipped models.

500V3 comes with needle and hardware as shown $55

500V3 Commercial Duty Replacement Needles

Diamond tip for 45/33 play $15
