Wire & Cable

Needles Cartridges Wire & Cable Title Strips Volume Pots Volume Keys Remote Volume Jukebox Parts Jukebox Keys Wallbox Keys Locks Soda Machine Keys Gas Springs Idler Wheels Belts Light Bulbs Fuses





Wire & Cable

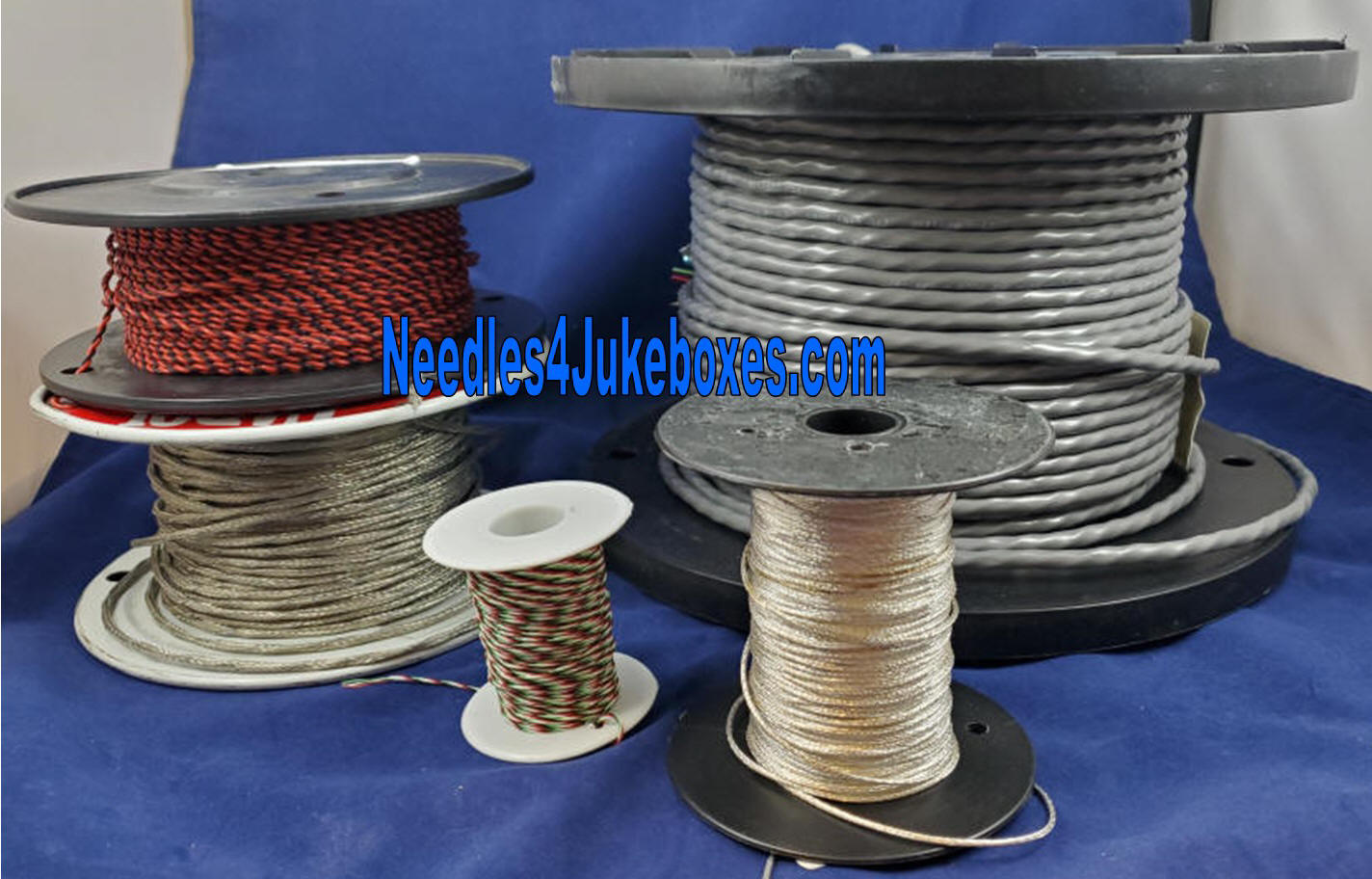

A wide selection primarily selected for use with Jukeboxes

But equally useful with guitar amplifiers, antique radios & record players, portable/suitcase record players and turntables of all sorts

Below you'll also find a good selection of Wallbox connection cable



>> Measure twice - Order Once!  There is a 20% restocking fee on all returned wire & cable <<

Shielded Input Cable

3 30AWG Conductors inside an open silver shield

Shield and inner conductors are silver plated - yielding improved sound quality

Use with Stereo Rockola, Wurlitzer & Rowe models

A very refined wire with high sound quality

> This is very fine wire, stripping and soldering work will take extra care and patience <

$3.95 per foot



2 32AWG conductors inside an open shield

Rare NOS Belden Tone Arm Cable

Use with any single channel (mono) tone arm

or double up and use with late AMI, early Rowe & other stereo models

Great vintage look, prefect for exacting restorations!



$3.95 per foot

> This is very fine wire, stripping and soldering work will take extra care and patience <

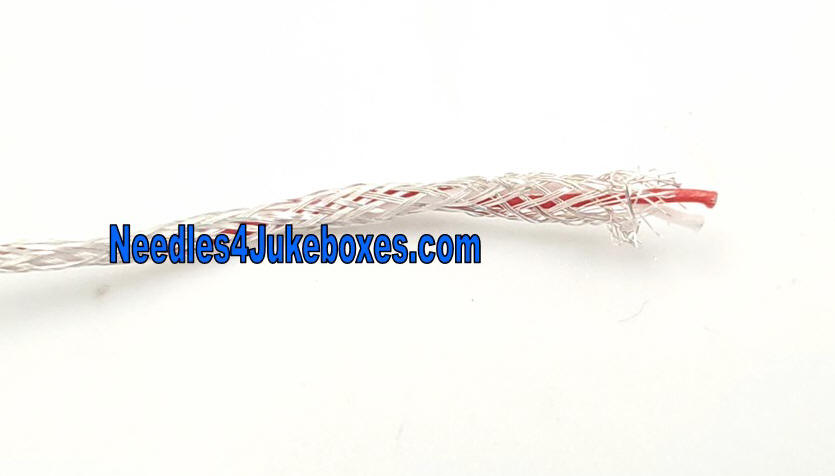

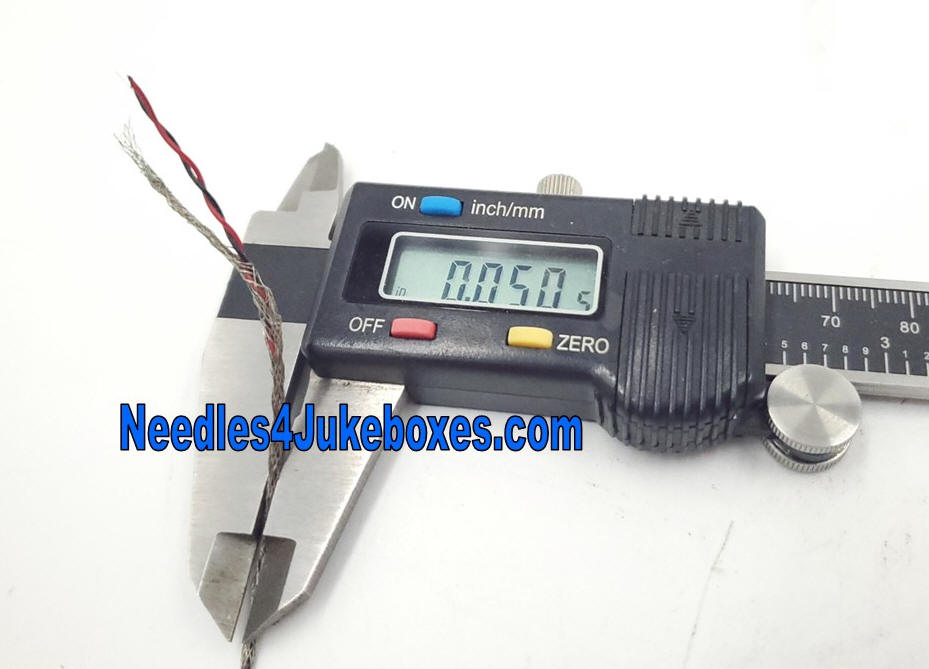

Silver over Copper 2 28AWG with open shield

My best quality 2 conductor tone arm cable, both leads and the shield are silver plated

$3.95 per foot

> This is very fine wire, stripping and soldering work will take extra care and patience <

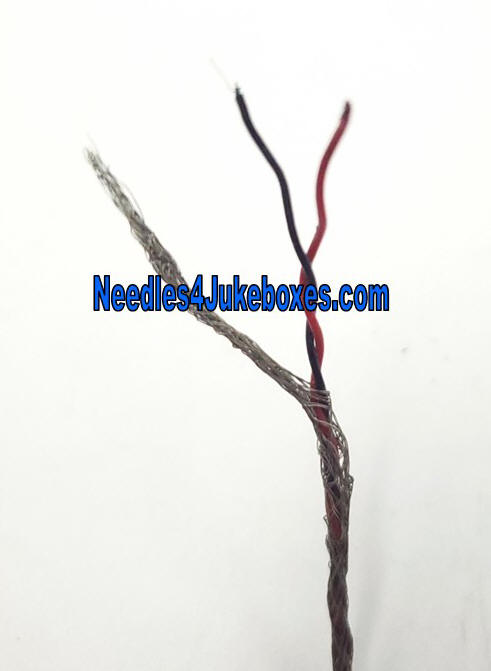

2 28AWG conductors inside an open shield

Use with any single channel (mono) tone arm

or twin cable stereo late AMI and early Rowe models



$3.75 per foot

> This is very fine wire, stripping and soldering work will take extra care and patience <

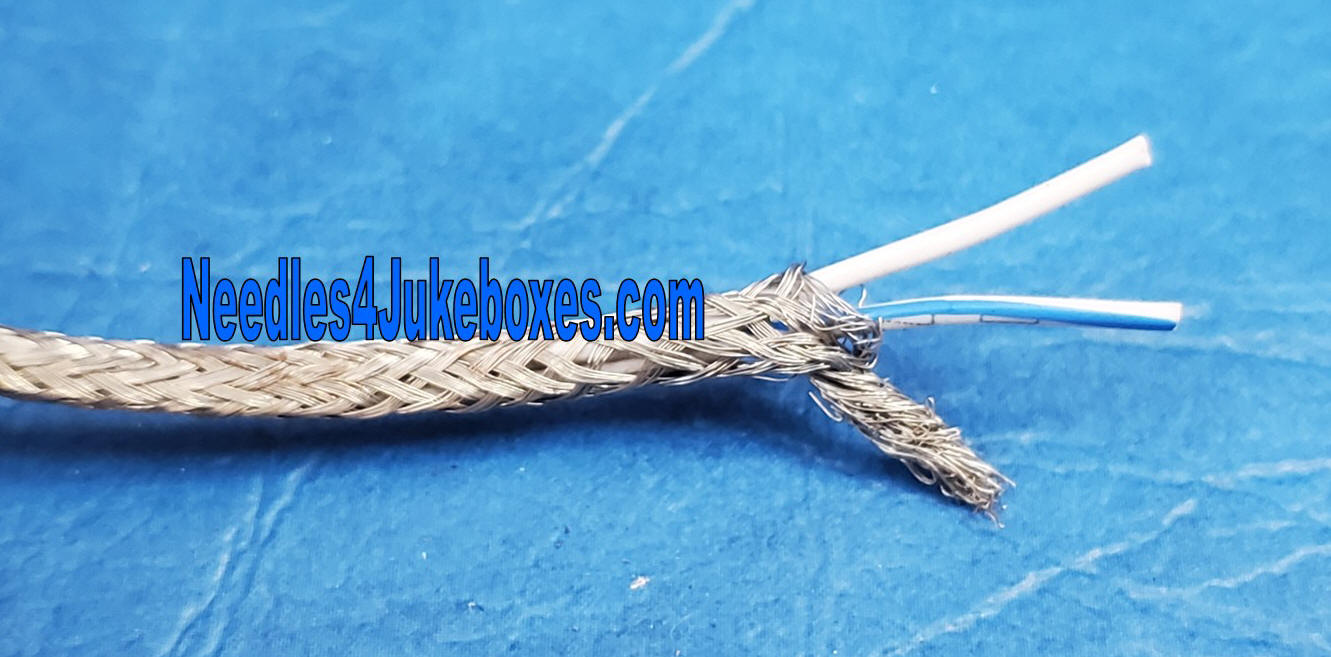

2 20AWG conductors inside an open shield

Just the thing for use with most mono/HiFi based makes/models

Excellent match for most 78 playing models & some early 45 models

$3.50 per foot



Mini Coax - Single Conductor with Shield

The best match I've been able to find for Cobra equipped Wurlitzers

Lightweight with good flexibility

This makes an excellent replacement for Wurlitzer models 1080A/1100

and post-war models though 1250-1650

and the 1700-2600 using the Cobramatic system

Also a light and flexible option for 78 playing models with heavy weight tone arms

Perfect for something like a 1015 for Jacobs tone arm



$2.95 per Foot

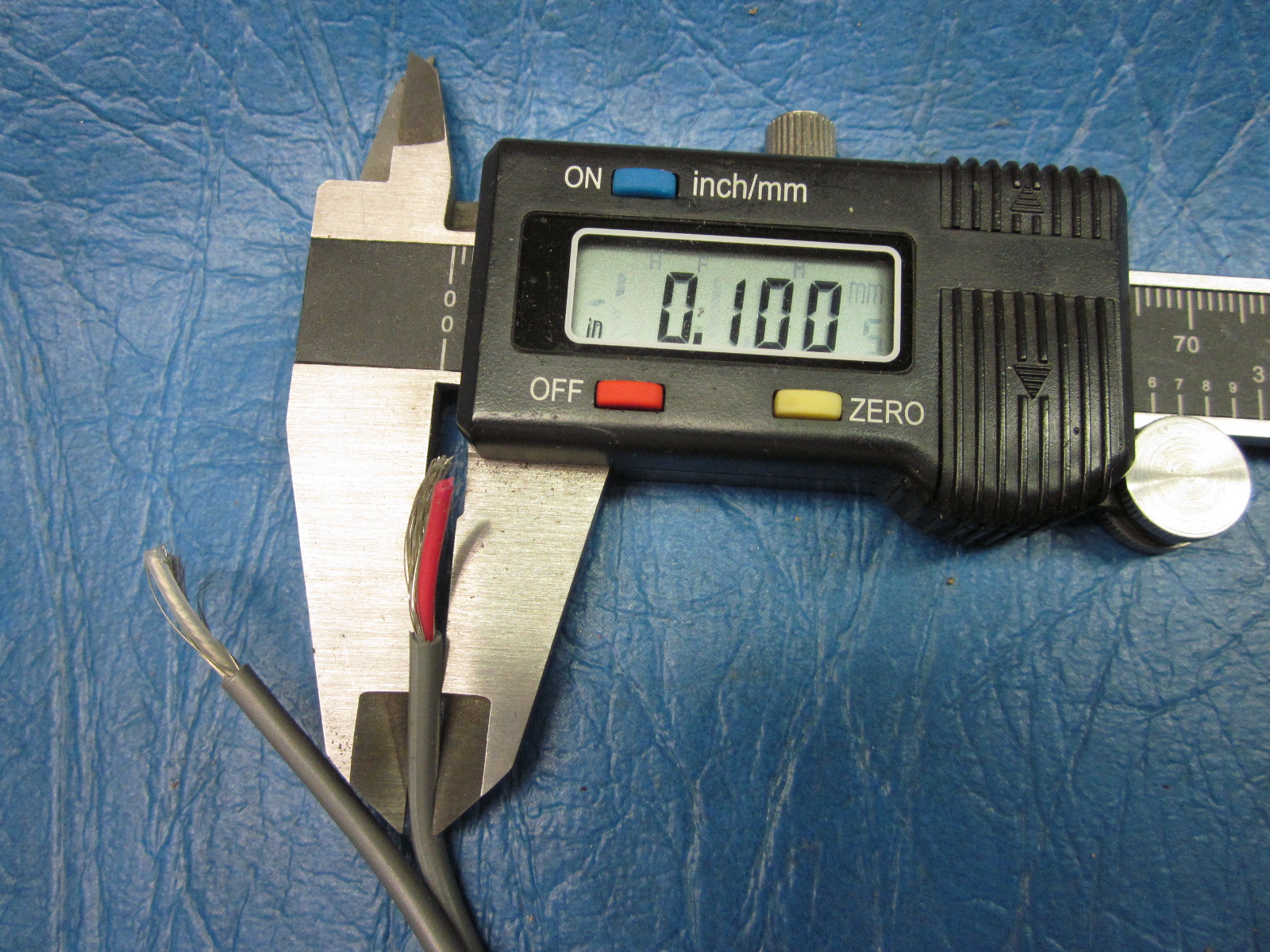

Single Channel/Mono HiFi Input Cable with Jacket

Consists of one center/hot conductor and an outer shield - inside a jacket

.100" or 1/10" or 2.5mm diameter



$3.25 per foot



2 Channel/Stereo Input Cable with Jacket

Each side consists of one center/hot conductor and an outer shield - inside a jacket

Exact match for the input cable on later Rowe models

.100" or 1/10" or 2.5mm diameter per side

$3.95 per foot

horizontal rule

Unshielded Cable

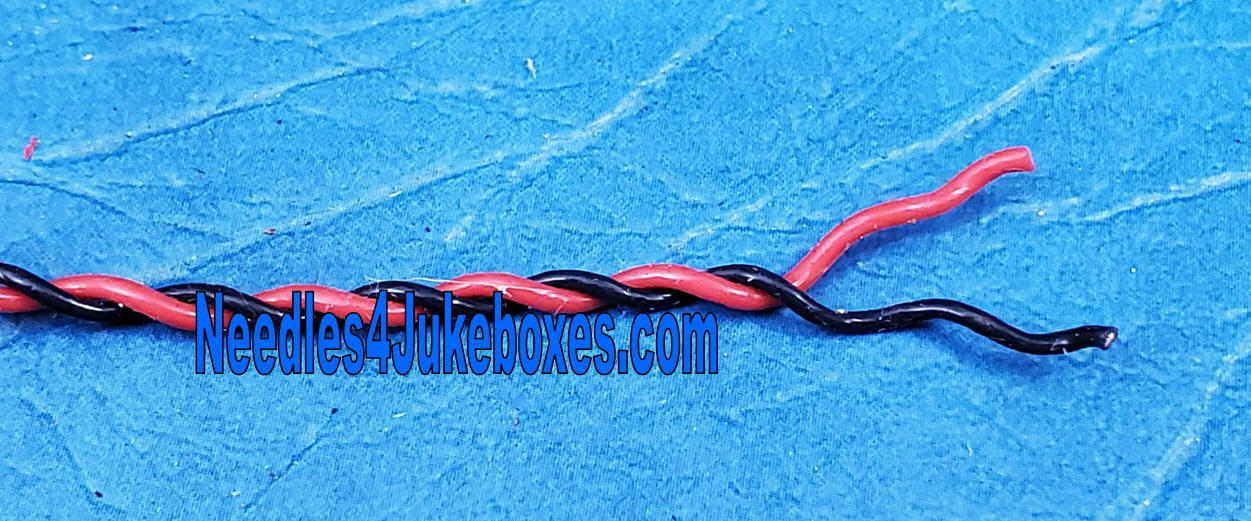

2 Conductor 24 AWG Tone Arm / Hook up Wire

Use inside metal tone arm shells

Or for hook-up wire inside amps, and all sorts of utility wiring applications

$2.45 per foot

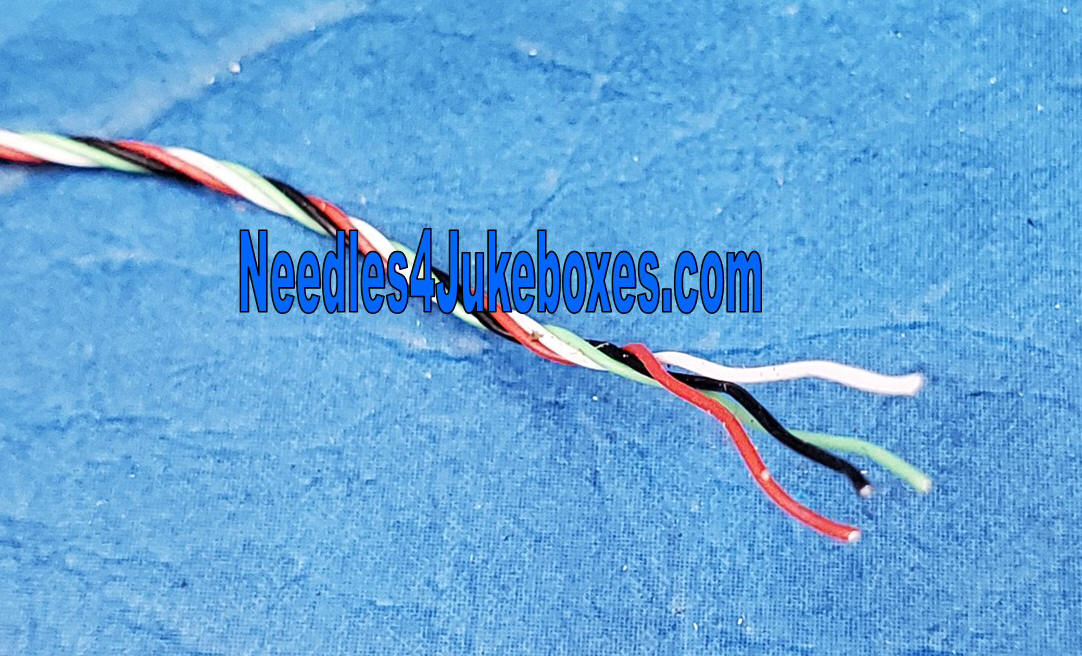

4 Conductor 32 AWG Input Cable

Works great with Seeburg, Wurlitzer, Rowe and other Stereo models

Excellent match for 2 & 4 wire Seeburg tone arms

$3.95 per foot

> This is very fine wire, stripping and soldering work will take extra care and patience <

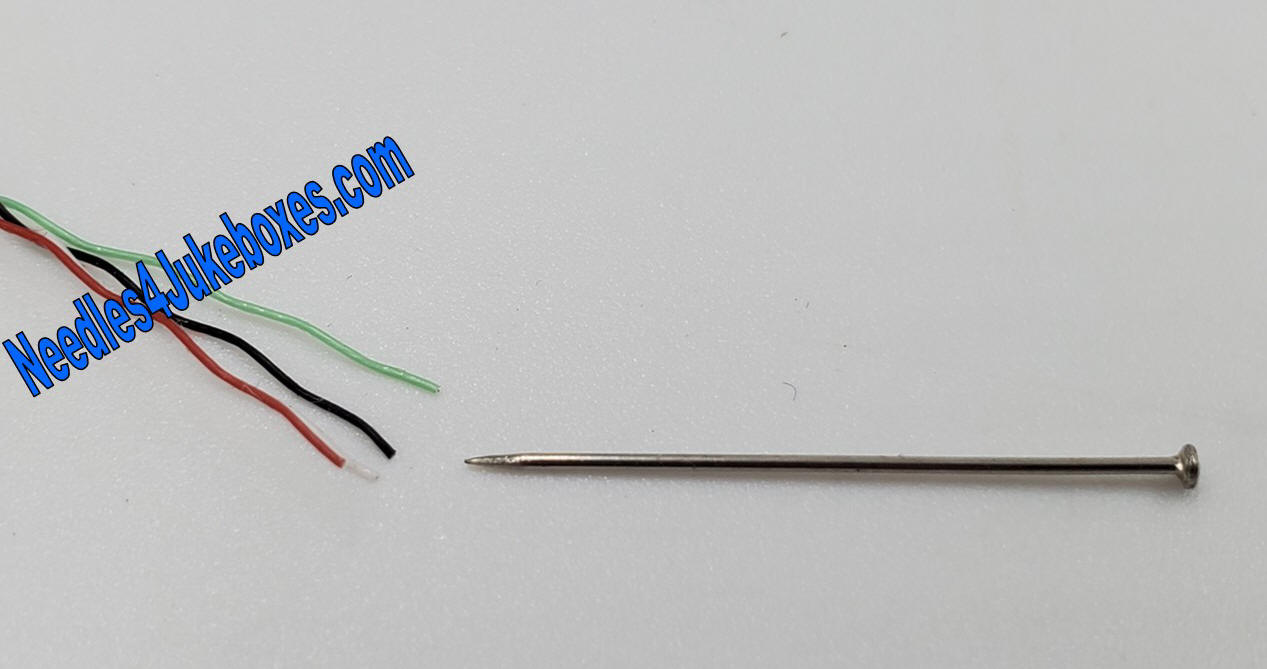

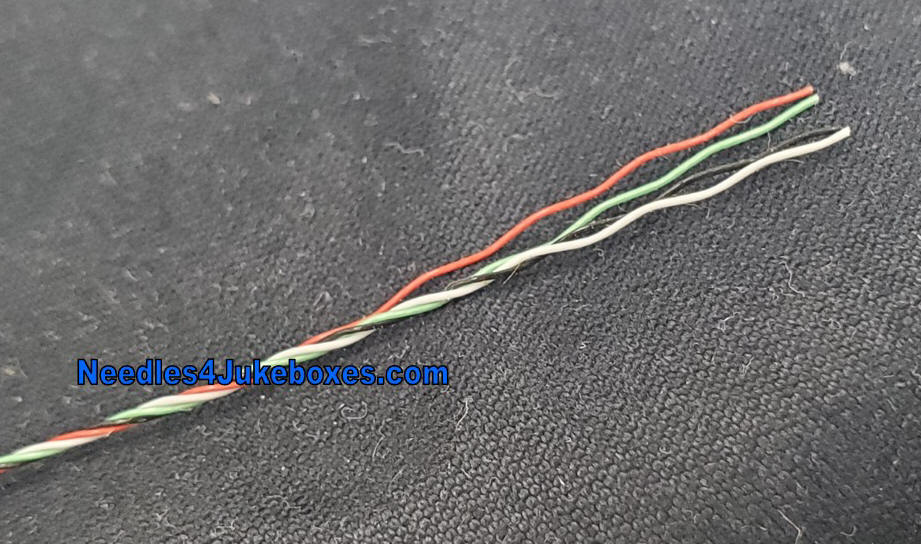

4 Conductor 38 AWG Input Cable

Works great with Seeburg, Wurlitzer, Rowe and other Stereo models

Excellent match for 2 & 4 wire Seeburg tone arms

When you need maximum flexibility and minimum diameter

Note in the first picture that is a standard common pin to give scale

Great for use with Jukeboxes, Phonographs & Turntables

$3.95 per foot

> This is ultra fine wire, stripping and soldering work will take extra care and patience <





Round Solder Lugs

Here's a handy item to go with any of the above cabling

These fit most cartridges (Shure M44/M77, AT3600 and so on) with modern sized round pins

Does not fit GE mono cartridges used on 1950's AMI & United Models

Does not fit Astatic crystal cartridges used on some Seeburg and Rockola models from the 30s and 40's



Set of 4 round lugs $3.99



Remote Volume Control Hook-up Cable

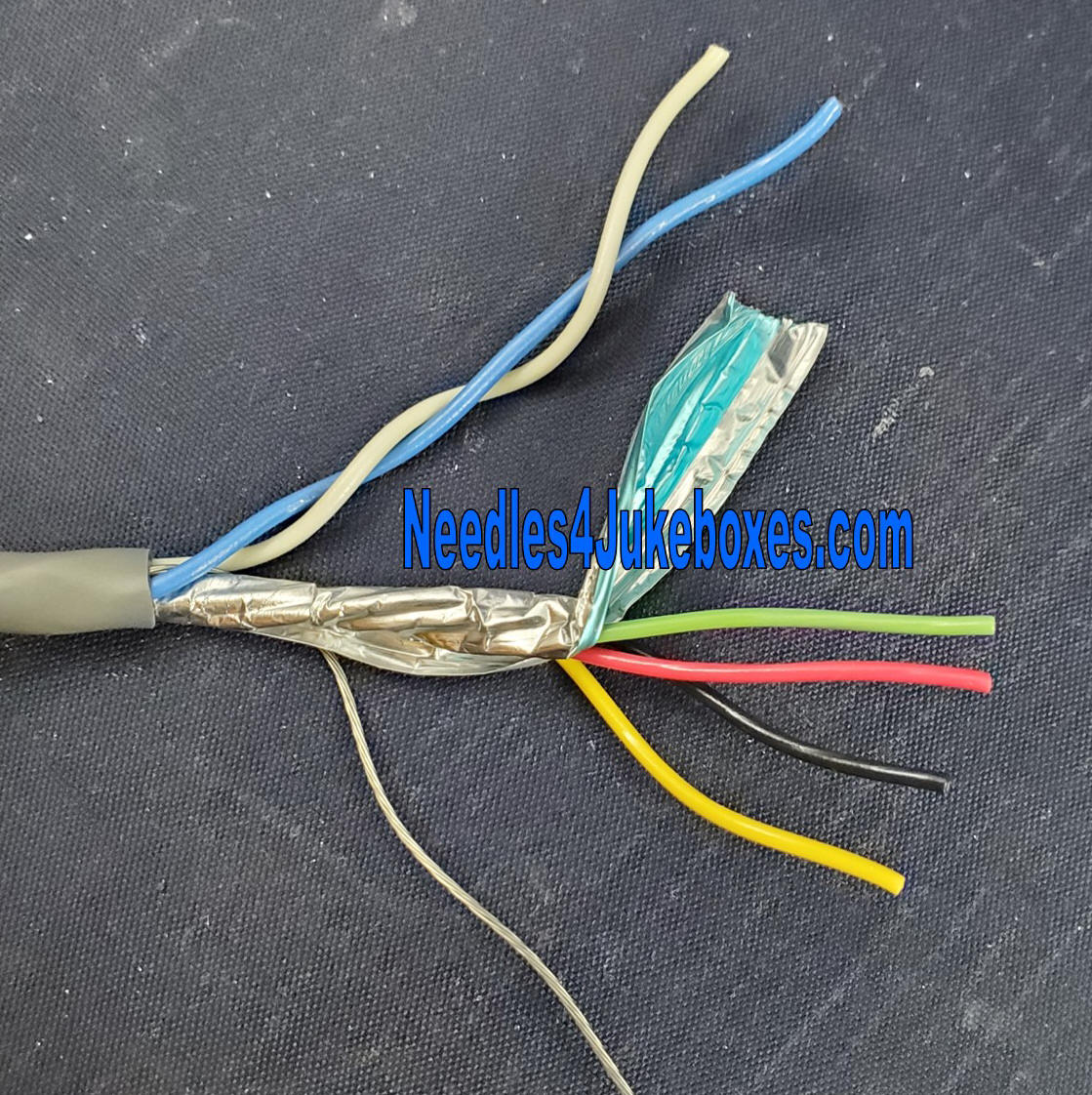

Mono/HiFi Remote Volume Control Cable

Exact Replacement: This cable contains a total of 6 conductors and 1 shield:

4 wires inside the shield for volume control and 2 wires outside the shield for the cancel button

Use with Seeburg MRVC-1 & MRVC-2 Remote Volume/Cancel Controls

Also compatible with many:

Non-motorized Rockola Mono/HiFi remotes with single pots

Wurlitzer Kit 147, 155 remotes (and probably several others)

AMI Stereo remotes using stacked pots

Rowe remotes (typically JAL through MM1) with stacked pots

$3.75 per foot, use the drop down menu to select longer lengths and save

Custom lengths available

Select Cable Length

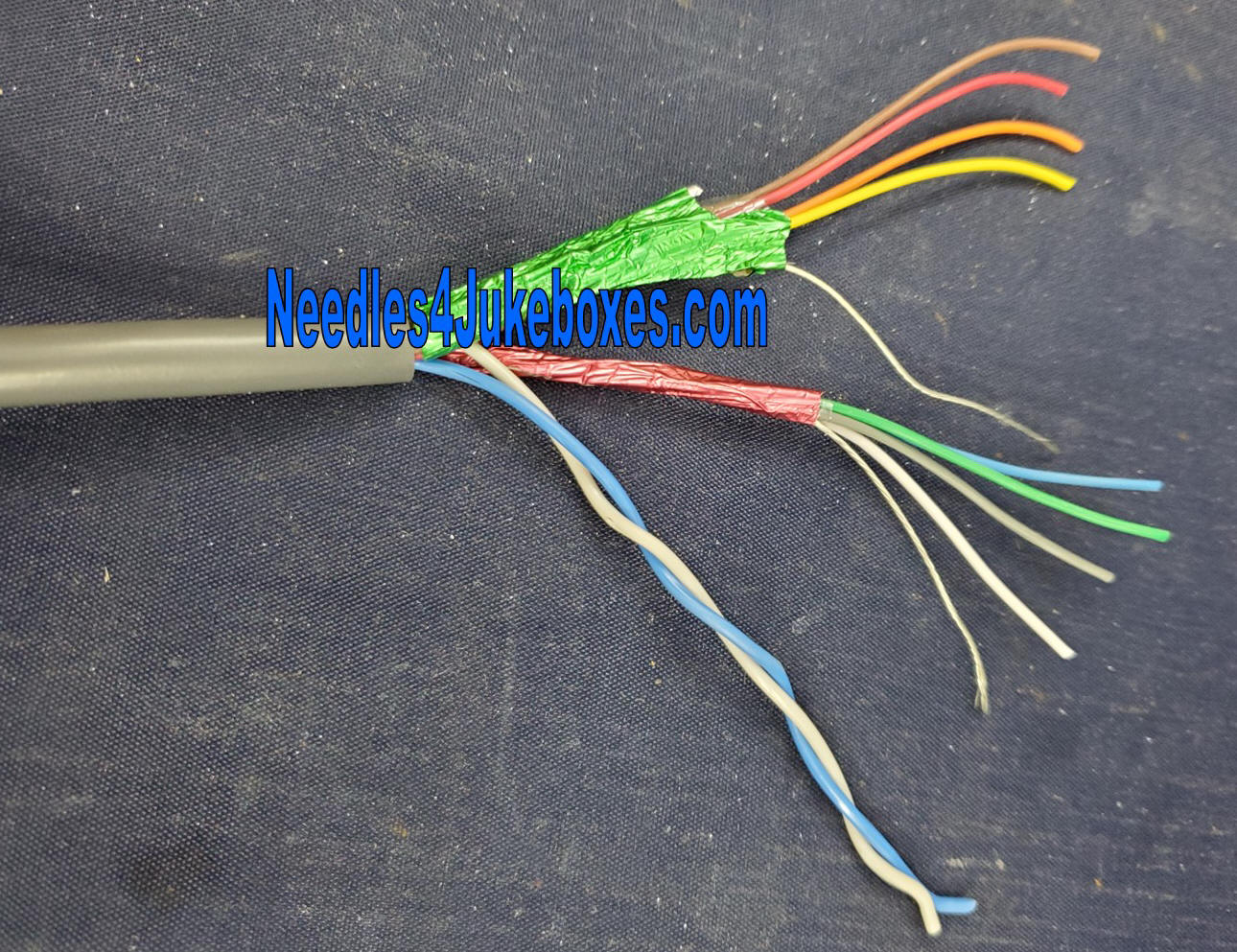

Stereo (& DRVC1) Remote Volume/Cancel Control

Exact Replacement: This cable contains a total of 10 conductors and 2 shields:

2 bundles with 4 wires inside each shield for each channel and 2 wires outside the shields for the Cancel button

Use with Seeburg DRVC-1 & RSVC-1 Remote Volume/Cancel Controls

The DRVC1 is used with Seeburg P146-P148 models using an MA1 or MA2 and RSA1-L6 amp

The RSVC1 is with with Seeburg 220/222, Q100 and Q160 models using the SHFA1 or SHFA2 Amp

Also compatible with non-motorized Rockola Stereo remotes and Wurlitzer Kit 160 remotes



$3.95 per foot, use the drop down menu to select longer lengths and save

Custom lengths available

Select Cable Length



Powered Remote Volume Control Cable

Exact replacement: contains a total of 5 conductors

Use with all Seeburg PRVC Remote Volume/Cancel Controls

Also compatible with most Rockola and Wurlitzer motorized volume controls

Custom Lengths available

Select length
